Introduction

This project demanded a fusion of advanced modeling, resilient design, and functional adaptability to meet the challenges posed by seismic activity, high wind forces, and blast loads.

Project Overview

  • Structure Type: Multi-level reinforced concrete control building with blast-resistant features, designed to house sensitive electrical and control equipment

  • Design Scope:

    • Structural design and detailing using Finite Element Method (FEM)

    • Blast load analysis and mitigation

    • Accommodation of battery rooms, HVAC zones and floor cutouts

    • Compliance with seismic and wind load codes

Foundation System

  • Raft Foundation: Selected for its ability to distribute loads uniformly across poor soil conditions and provide a stable base in seismic zones.

  • All foundations in both directions were connected with tie beams so that when there is a blast load, the entire structure should displace in unison.

  • Waterproofing and anti-corrosion protection for below-grade components.

Primary Challenge

The most critical challenge was designing a structure that could simultaneously resist blast pressures, seismic forces, and high wind pressures—without compromising on the functional requirements and operational control systems.

Design Challenges

  • Blast Load Resistance: Required specialized detailing of walls, slabs, and openings to absorb and deflect blast energy without structural failure.

  • Seismic Load Management: Designing for lateral forces, base shear, and drift control in a multi-level structure.

  • Wind Load Resistance: Ensuring stability against uplift and lateral wind pressures.

Engineering Strategy & Structural Design

Finite Element Modelling

A detailed FEM model was developed to simulate complex load interactions, including blast scenarios, seismic events, and wind pressures. This allowed for precise stress distribution analysis and optimization of reinforcement.

Blast-Resistant Detailing

  • Use of high-strength concrete and steel

  • Reduced window openings and reinforced door frames

  • Shear walls designed to redirect blast energy

Seismic and Wind Design

  • Seismic analysis performed

  • Wind load calculations for lateral stability

Foundation Design

  • The raft slab was modeled using FEM to simulate stress concentrations due to heavy equipment, cutouts, and loads.

  • This allowed for precise reinforcement detailing and slab thickness optimization.

Functional Accommodation

  • Strategic placement of cutouts with additional framing

Safety & Compliance

  • Design aligned with Standard Codes for blast-resistant buildings.

Design Outcome Summary

  • The building meets all blast, seismic, and wind load criteria with robust safety margins.

  • All operational needs—electrical zones, battery rooms, and sanitary facilities—were seamlessly integrated.

  • Seismic and wind loads were addressed through advanced analysis and detailing.

  • FEM-based optimization reduced material usage compared to traditional design methods.

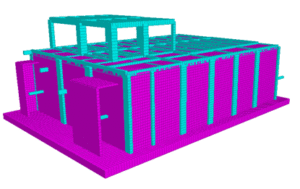

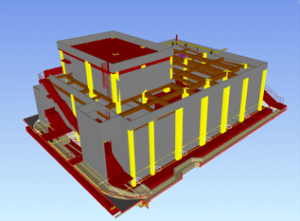

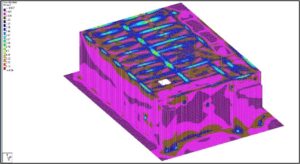

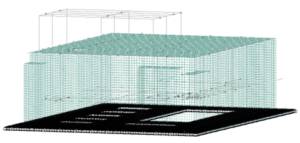

Snaps of the prepared 3D model and the wireframe obtained in STAAD for analysis

Conclusion

Designing this blast-resistant control building was a testament to the power of integrated engineering. By leveraging advanced modelling techniques and a collaborative design approach, we delivered a structure that not only meets stringent safety standards but also supports the critical operations of a power plant.
