The transformer foundation is more than a simple concrete block; it is a critical structural system that ensures stability, safety, and functionality. It must accommodate extreme static loads, dynamic forces, and environmental hazards, while integrating multiple functional elements such as oil containment pits, cable trenches, mounting rails, pedestals, and firewalls.

This blog explores the complete journey—from physical modeling and load assessment to structural analysis, design, and detailing—of a transformer foundation engineered to meet stringent performance criteria.

Project Overview

Structure Type:
Reinforced concrete transformer foundation system

Design Scope:

Loading: Dead loads, seismic forces, vibration/dynamic loads, impact during rail operations, and fluid loads (oil and water).

Structural Detailing: Reinforced concrete block with ductile reinforcement and anchorage systems.

Functional Integration: Burnt oil pits for fire safety, cable trenches for routing, vibration isolation pads, and fire-resistant materials.

Primary Challenge

The primary challenge was designing a foundation capable of safely supporting extremely heavy transformer loads while accommodating seismic forces, vibration, and integrating multiple functional elements—such as oil containment, cable trenches, and rails—without compromising structural integrity or serviceability.

Design Challenges
Seismic Vulnerability

In earthquake-prone regions, transformers generate large inertial forces due to their heavy mass. The foundation must be detailed with ductile reinforcement and strong anchorage to prevent displacement and brittle failure during seismic events.

Heavy Concentrated Loads

Transformers impose massive point loads through pedestals or rails, which can overstress soil and concrete locally. The challenge is to distribute these loads evenly using raft or pile foundations while keeping settlements within safe limits.

Burnt Oil Pit Integration

Burnt oil pits are essential for fire safety but must be integrated without weakening the structural system. The design ensures adequate capacity, fire-resistant lining, and drainage while maintaining foundation strength.

Cable Trenches

Cable trenches cut through or around the foundation, creating potential weak points. These openings require careful reinforcement to prevent cracking while ensuring waterproofing, fireproofing, and safe cable routing.

Vibration Control

Transformers generate operational vibrations that can affect performance and cause structural fatigue. The foundation must be stiff enough to avoid resonance and include isolation pads to dampen vibrations.

Eccentric Mass Distribution

Despite a nearly rectangular load footprint, eccentric transformer mass requires two-way reinforcement and ductile anchorage to safely resist biaxial bending.

Engineering Strategy & Structural Design

Foundation System:
Reinforced concrete block foundation, raft, or pile-supported system depending on soil conditions.

Seismic Detailing:
Ductile reinforcement, anchorage bolts, and shear keys designed to resist seismic actions.

Burnt Oil Pit:
Designed adjacent to or beneath the foundation, lined with fire-resistant concrete and connected to drainage systems.

Cable Trenches:
Integrated within the foundation layout using reinforced openings to maintain strength and safety.

Vibration Isolation:
Isolation pads provided beneath the transformer to dampen operational vibrations.

Durability Measures:
Fire-resistant concrete mixes, protective coatings, and effective drainage provisions.

Design Outcome Summary

The foundation ensures stability against seismic forces and operational vibrations through robust anchorage and optimized load paths.

Rails and pedestals were aligned to millimeter-level tolerances, ensuring smooth transformer movement and precise equipment positioning.

Controlled deflections, vibration isolation, and crack-width management ensure long-term durability and operational reliability.

Burnt oil pits were successfully integrated for fire safety and environmental protection.

Modular detailing, clear access paths, and removable trench covers simplify installation and future maintenance, reducing downtime and cost.

Summary

Designing transformer foundations requires a multidisciplinary approach. By addressing seismic forces, concentrated loads, vibration control, and the integration of burnt oil pits and cable trenches, engineers create foundations that are not only structurally sound but also functionally safe and operationally reliable.

In critical facilities such as oil and gas plants and power stations, this approach ensures uninterrupted power supply and long-term protection of vital infrastructure. Ultimately, it is clarity in design, precision in detailing, and strong interdisciplinary coordination that transform a simple block of concrete into a high-reliability foundation.

About Author

Jaya P S is an experienced Structural Engineer with 18+ years of hands-on experience in the design and analysis of complex steel structures, including towers, industrial facilities, and transmission infrastructure. Backed by decades of field and software expertise, the insights shared here reflect practical knowledge sharpened through real-world project execution.

Our experts offer full-cycle consulting—from finite element modeling and code compliance to custom foundation detailing.

The post Paradigm Designs a High-Reliability Transformer Foundation for Power & Industrial Plants appeared first on Paradigm.

Designing a Technological structure for an industrial facility is a critical task that goes beyond conventional framing. These structures form the core support system for advanced process equipment, dense piping networks, cable trays, heavy equipment and cooling units, ensuring seamless plant operations. This blog outlines the design philosophy, major challenges, and engineering strategies adopted to deliver a high-performance technological steel structure that meets the demands of modern industry.

Project Overview

Structure Type:
A technological industrial steel structure designed to support:

• High-density piping networks for process and utility systems.

• Critical technological equipment such as air coolers, vessels, pumps, heat exchangers, and control panels.

• Access platforms for operation and maintenance.

Design Scope

• Modeling:
  A detailed 3D model created in STAADPro replicating geometry, stiffness, and connectivity.

• Loading:
  Load cases including dead loads, live loads, pipe/equipment operating loads, hydro-test conditions, thermal effects, wind forces, and seismic actions.

• Analysis:
  Structural stability checks, dynamic analysis for seismic effects, and vibration control for sensitive equipment.

• Structural Drawings:
  Complete GA drawings, member schedules, and connection details for fabrication and erection.

• Foundations:
  Isolated pedestal foundations with anchor bolts designed for combined tension and shear, ensuring stability under uplift and overturning.

Primary Challenges

The primary challenge was to develop a safe, efficient, and structurally sound steel framework capable of supporting advanced technological equipment and a dense network of piping. The design needed to address multiple critical factors simultaneously, including seismic wind resistance, serviceability requirements, and accommodation of thermal movements. This combination of performance, safety, and adaptability formed the cornerstone of the engineering approach for the project.

Design Challenges

Complex Load Interactions

• Dynamic forces from rotating equipment affect vibration performance.

Seismic and Wind Effects

• High-level platforms and coolers create large lateral forces.

• Avoiding torsional irregularities due to asymmetric equipment layout.

Thermal Movements

• Managing expansion forces from long pipe runs without overstressing supports.

Foundation Uplift

• Braced frames inducing tension under wind and seismic loads.

Constructability

• Modularization for faster erection and future maintenance access.

Engineering Strategy and Structural Design

Advanced Modelling and Analysis

• Comprehensive 3D model was developed in STAAD.Pro, accurately representing geometry, member releases, and load paths.

• Key analysis steps included Static and dynamic load cases, Response Spectrum Analysis, and Frequency checks.

Structural System Selection

• The framework was designed as braced frames for lateral stability under wind and seismic forces.

• Moment resisting connections in critical bays for stiffness.

• Secondary beams and stringers for equipment platforms and walkways.

Connection Detailing

• Design connections to ensure efficient force transfer between structural members under all load combinations.

• Incorporate practical and standardized details that simplify fabrication, enable quick erection, and allow easy inspection.

BIM Integration

The structural model was integrated into a BIM environment to:

• Coordinate with piping, equipment, and electrical layouts.

• Detect and resolve clashes early in the design phase.

• Facilitate accurate fabrication drawings and material take-offs.

Safety and Access

• Walkways, stairs, and ladders designed for ergonomic access and compliance with industrial safety standards.

• Guardrails, toe plates, and anti-slip grating for personnel protection.

• Clear maintenance routes and lifting paths for equipment removal and servicing.

• Fire safety provisions are integrated with structural layout.

Load Management and Serviceability

Serviceability checks ensured:

• Story drift limits for pipe alignment.

• Deflection control for equipment supports.

• Vibration performance within acceptable limits for sensitive machinery.

Foundation Design

• Foundations were designed to resist combined vertical, lateral, and uplift forces from wind and seismic actions.

• Anchor bolts and base plates were detailed for tension and shear, ensuring stability under extreme load cases.

• Adequate embedment depth and edge clearances were maintained to prevent concrete failure.

• Soil capacity, settlement, and sliding resistance were verified to ensure long-term performance.

Design Outcome Summary

• The structural system provided robust lateral stability with efficient bracing and optimized load paths.

• Thermal movement allowances were successfully integrated, preventing overstress in piping and equipment connections.

• Connection detailing and anchorage design ensured reliable performance under cyclical and reversible loads.

• BIM integration improved coordination, eliminating clashes and streamlining fabrication and erection workflows.

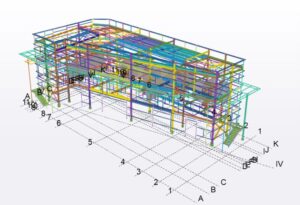

Snaps of the prepared 3D model and the wireframe view generated in STAAD for analysis

Conclusion

Designing a technological structure for an industrial facility demands a holistic approach that combines advanced analysis, precise detailing, and practical constructability. The final design not only meets structural safety and serviceability requirements but also ensures material efficiency, future adaptability, and ease of maintenance. Through BIM integration, optimized connections, and well-planned access provisions, the structure stands as a reliable and sustainable solution for modern industrial operations.

About Author

The author Shana Iqbal is an experienced structural engineer having 6+ years of experience in structural design, analyzing, and managing diverse structural projects. Skilled in applying engineering principles to ensure safety, functionality, and cost-effectiveness. She has worked on apartments, refinery and power plant structures, with a strong focus on innovative and sustainable design solutions. With expertise in structural analysis software, construction practices, and project coordination, she brings both technical knowledge and practical insight to every project.

The post Paradigm Designs a High-Performance Technological Steel Structure for Industrial Facilities appeared first on Paradigm.

The project involved designing a steel pipe rack / pipe bridge for an oil and gas plant. This rack serves as the backbone for routing multiple process pipelines, cable trays, coolers, and equipment platforms. The structure had to ensure safe operation, optimized material usage, and future flexibility, while accommodating maintenance access and equipment clearances.

This blog highlights the design approach, obstacles, and resolutions involved in creating this complex structure.

Project Overview

Structure Type:
Multi-bay steel framing system with rolled and built-up sections.

Scope of Work

• Analysis and Design:
  Global structural analysis and design of both superstructure and foundation using advanced software, considering seismic response spectrum and wind actions.

• Connection Design:
  Structural connections, including base plates and member-to-member joints, were meticulously designed to ensure the safe and efficient transfer of forces.

• Modelling:
  Creation of a 3D structural model coordinated with piping and equipment layouts.

• Drawings:
  Preparation of detailed structural drawings.

Primary Challenge

The main challenge was to design a safe yet optimized structure capable of withstanding high seismic and wind forces, while supporting multiple pipes and equipment without excessive material usage.

Design Challenges

Seismic and Wind Effects

• High lateral forces demanded stringent drift control and ductile detailing.

• Wind-induced sway and uplift required strong anchorage and bracing.

Load Complexity

• Multiple pipe sizes, coolers, and trays created eccentric loads and torsional effects.

• Future load provisions added uncertainty to the design.

Optimization vs Safety

• Balancing material economy with structural strength under extreme load combinations.

Foundation Design

• Uplift and overturning moments under seismic and wind combinations.

• Settlement control to maintain piping alignment.

Constructability and Access

• Dense piping and equipment required clear walkways and safe margins.

Engineering Strategy & Structural Design

Structural System Selection

• Adoption of a robust yet efficient framing system to carry gravity loads and resist lateral forces.

• Combination of moment frames and braced frames to ensure stability while minimizing interference with piping and equipment layouts.

• Provision of expansion bays to accommodate thermal movements and future modifications.

Load Identification & Distribution

Consideration of all relevant loads:

• Permanent loads (self-weight, grating, equipment)

• Variable loads (maintenance live load, pipe operating and test loads)

• Environmental loads (wind and seismic forces)

Loads were distributed realistically, accounting for eccentricities from pipe clusters and equipment.

Analysis Approach

• Development of a 3D structural model using advanced analysis software.

• Global analysis for overall stability and local checks for individual members.

• Inclusion of dynamic effects such as seismic response and wind-induced vibration.

Member Design

• Beams, columns, and bracing designed for combined axial, bending, and shear forces.

• Lateral stability ensured through adequate bracing and restraints.

• Serviceability checks for deflection, drift, and vibration to ensure operational safety.

Connection Detailing

• Connections designed to transfer forces effectively between members.

• Ductility and strength ensured for reversible and cyclic loading conditions.

• Simple, inspectable detailing adopted for ease of fabrication and maintenance.

Foundation Design

• Foundations designed to resist vertical loads, lateral forces, and overturning moments.

• Uplift and settlement control addressed to maintain alignment of piping and equipment.

• Foundation type selection based on soil conditions and load intensity.

BIM Integration

• BIM coordination used for clash detection between structural elements, piping, equipment, and foundations.

• Enabled real-time interdisciplinary collaboration, improving constructability.

Safety & Access

• Integration of walkways, guardrails, kick plates, and safe margins around openings.

• Adequate space ensured for maintenance and future expansion.

Design Outcome Summary

• Excellent structural stability achieved through anchor bays and braced frames.

• Seismic and wind effects, lateral drift, and vibration maintained within safe limits.

• Optimized material usage without compromising safety or reliability.

• Expansion bays and future load provisions integrated into the design.

• Clear walkways and access points ensured ease of construction and maintenance.

(3D model and wireframe view generated in STAAD for analysis)

Conclusion

This project demonstrates Paradigm’s capability to deliver strong, reliable infrastructure for the oil and gas industry under demanding conditions. By combining rigorous seismic and wind-resistant design principles with cost-effective engineering solutions and BIM-driven coordination, the steel pipe rack was designed to be safe, durable, and future-ready.

The final structure integrates seamlessly with plant operations and meets the evolving demands of modern industrial facilities.

About Author

Ashly Paul is an experienced structural engineer with 6+ years of experience in structural design, analysis, and management of diverse structural projects. She has worked on refinery and power plant structures, with a strong focus on innovative and sustainable design solutions. With expertise in structural analysis software, construction practices, and project coordination, she brings both technical knowledge and practical insight to every project.

The post Paradigm Designs a High-Performance Steel Pipe Rack for an Oil and Gas Plant appeared first on Paradigm.

Project Overview

• Building type: Church Building

• Scope: Steel detailing work for the entire church building

• Primary challenge: A church with beautiful architectural features

Key Challenges

• Complex connections

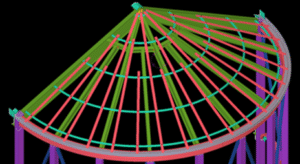

• Dome area modelling

Our Solution: Engineering Strategy

• Discussion with customer regarding solutions for complex connections, especially on curved areas

• Precise modelling of architectural elements

Key methods included:

• Architectural drawing study: Architectural drawings were studied and executed in such a way that all the requirements of the owner meet the building design.

• Expertise detailing team: A special team was formed to work on this job with a high level of experience.

Execution Highlights

Our execution is up to the drawings delivery stage.

Engineering Tools & Coordination

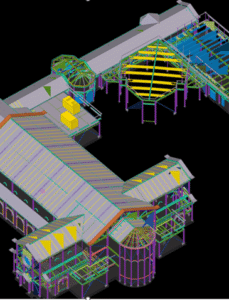

Tekla used as 3D-modelling software for this job.

Project Results Summary

Project executed with high quality within scheduled time.

Conclusion

This project stands as a testament to our ability for detailing complex structures which have high architectural features.

About the Author

Dias Jose is an experienced Detailing Engineer with 15+ years of experience in steel detailing and delivering complex structures for commercial, industrial, and infrastructure projects. Skilled in project coordination, checking, and customer relationships.

The post Paradigm’s Engineering Excellence in Church Steel Detailing appeared first on Paradigm.

Introduction

This project demanded a fusion of advanced modeling, resilient design, and functional adaptability to meet the challenges posed by seismic activity, high wind forces, and blast loads.

Project Overview

• Structure Type: Multi-level reinforced concrete control building with blast-resistant features, designed to house sensitive electrical and control equipment

• Design Scope:

  • Structural design and detailing using Finite Element Method (FEM)

  • Blast load analysis and mitigation

  • Accommodation of battery rooms, HVAC zones and floor cutouts

  • Compliance with seismic and wind load codes

Foundation System

• Raft Foundation: Selected for its ability to distribute loads uniformly across poor soil conditions and provide a stable base in seismic zones.

• All foundations in both directions were connected with tie beams so that when there is a blast load, the entire structure should displace in unison.

• Waterproofing and anti-corrosion protection for below-grade components.

Primary Challenge

The most critical challenge was designing a structure that could simultaneously resist blast pressures, seismic forces, and high wind pressures—without compromising on the functional requirements and operational control systems.

Design Challenges

• Blast Load Resistance: Required specialized detailing of walls, slabs, and openings to absorb and deflect blast energy without structural failure.

• Seismic Load Management: Designing for lateral forces, base shear, and drift control in a multi-level structure.

• Wind Load Resistance: Ensuring stability against uplift and lateral wind pressures.

Engineering Strategy & Structural Design

Finite Element Modelling

A detailed FEM model was developed to simulate complex load interactions, including blast scenarios, seismic events, and wind pressures. This allowed for precise stress distribution analysis and optimization of reinforcement.

Blast-Resistant Detailing

• Use of high-strength concrete and steel

• Reduced window openings and reinforced door frames

• Shear walls designed to redirect blast energy

Seismic and Wind Design

• Seismic analysis performed

• Wind load calculations for lateral stability

Foundation Design

• The raft slab was modeled using FEM to simulate stress concentrations due to heavy equipment, cutouts, and loads.

• This allowed for precise reinforcement detailing and slab thickness optimization.

Functional Accommodation

• Strategic placement of cutouts with additional framing

Safety & Compliance

• Design aligned with Standard Codes for blast-resistant buildings.

Design Outcome Summary

• The building meets all blast, seismic, and wind load criteria with robust safety margins.

• All operational needs—electrical zones, battery rooms, and sanitary facilities—were seamlessly integrated.

• Seismic and wind loads were addressed through advanced analysis and detailing.

• FEM-based optimization reduced material usage compared to traditional design methods.

Snaps of the prepared 3D model and the wireframe obtained in STAAD for analysis

Conclusion

Designing this blast-resistant control building was a testament to the power of integrated engineering. By leveraging advanced modelling techniques and a collaborative design approach, we delivered a structure that not only meets stringent safety standards but also supports the critical operations of a power plant.

About Author

The author Linta Shibu is an experienced structural engineer with a strong background in structural design, analysis, and project management across a range of complex structures. Her professional experience includes working on refinery and power plant structures, where she has demonstrated proficiency in structural analysis software, construction methodologies, and project coordination. Combining technical expertise with practical insight, she consistently delivers efficient and reliable engineering outcomes.

The post Paradigm: Designing a Multi-Level Blast-Resistant Control Building appeared first on Paradigm.

A static equipment foundation is a structure, often made of reinforced concrete, designed to support non-moving industrial equipment like pressure vessels, tanks, and heat exchangers. This blog walks through the journey from concept to construction-ready documentation, highlighting how digital tools like Autodesk Revit transformed the process.

Structure Type

Equipment foundations for static equipment such as pressure vessels, heat exchangers, storage tanks, columns, reactors, etc.

Scope of Work

• Structural analysis and design of equipment foundation

• 3D modelling of the foundation

• Preparation of structural drawings and bar bending schedule

Design Challenges

Precision Requirements

Static equipment demands tight tolerances for anchor bolt placement and baseplate leveling. Achieving this in a congested rebar environment was a key challenge.

Rebar Congestion

The pedestal had high reinforcement density due to seismic and wind load requirements. Coordinating rebar with embedded items required meticulous detailing.

Interdisciplinary Coordination

Mechanical and electrical systems introduced embedded conduits, and equipment had to be integrated without compromising structural integrity.

Constructability

The foundation design had to be practical for site execution, with clear bar bending schedules and minimal rework.

Design Factors

• Equipment properties: The foundation’s design is heavily influenced by the equipment’s weight, dimensions, and shape.

• Operational loads: Must account for the equipment’s weight, as well as forces from internal pressure, external loads, thermal expansion, and potentially seismic activity.

• Soil conditions: The type of soil and its bearing capacity determine the foundation’s size and depth.

• Presence of nearby structures: Presence of nearby structures is another factor which determines the size of the foundation.

Engineering Strategy

Structural Design

The type of equipment and shape of foundation required was identified. Isolated footing was provided for foundation with light to moderate loads with good soiling conditions and combined footings or raft when equipment is closely spaced or soil bearing is low. Loads and load combinations were analyzed as per Euro code and Algerian code. The foundation was designed to ensure stability, minimize settlement and loss of contact, and resist bending moments, shear forces, and crack width.

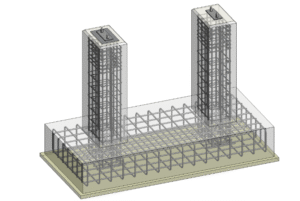

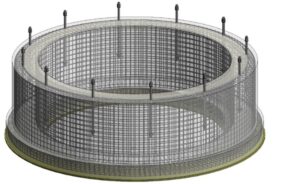

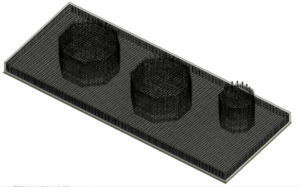

3D Modeling in Revit

The entire foundation including pedestal, anchor bolts, and rebar was modeled in Revit. This enabled real-time clash detection and seamless coordination with other disciplines.

Rebar Detailing

Revit’s rebar tools allowed us to visualize bar placement, optimize lap lengths, and ensure clear cover compliance. Hooks, bends, and splices were modeled accurately for fabrication and to prevent clashes with anchor bolts.

Documentation

Construction drawings and BBS were extracted directly from the Revit model, reducing manual errors and improving site efficiency.

Conclusion

This project showcased the power of integrated design and digital modeling. By combining structural engineering with BIM tools like Revit, we delivered a foundation that was not only structurally sound but also construction-ready and coordination-friendly.

About the Author

Maya K S is an experienced structural engineer with a strong background in structural design, analysis, and project management across a range of complex structures. She specializes in applying sound engineering principles to achieve safe, functional, and cost-effective solutions. Her professional experience includes working on refinery and power plant structures, where she has demonstrated proficiency in structural analysis software, construction methodologies, and project coordination. Combining technical expertise with practical insight, she consistently delivers efficient and reliable engineering outcomes.

The post Paradigm’s Expertise in Structural Design and Detailing of Static Equipment Foundations appeared first on Paradigm.

This project involved the comprehensive structural design and detailing of a Conveyor System for a chemical production facility. The system comprised:

• Transfer Towers: 60-meter-high vertical structures housing equipment like bag filters, hoppers, and vertical conveyors.

• Conveyor Galleries: 32-meter-long steel spans carrying dual conveyors between towers.

• Trestles: Intermediate supports ensuring gallery alignment and structural continuity.

• Foundations: A hybrid system combining deep pile foundations and raft slabs to resist seismic forces, uplift, and dynamic loads.

The primary structural framework utilized fabricated box sections for columns and standard steel profiles for beams and bracing, optimized for torsional rigidity and load efficiency.

Snaps from Model

Engineering Challenges

• Wind Loads: High exposure due to tower height and open terrain.

• Seismic Effects: Located in a high seismic zone, requiring robust lateral load resistance.

• Dynamic Loads: Continuous conveyor operation imposed vibration and fatigue stresses.

• Thermal Expansion: Long galleries required movement accommodation.

• Elevation Coordination: Precise level matching at conveyor interfaces was essential for uninterrupted material flow.

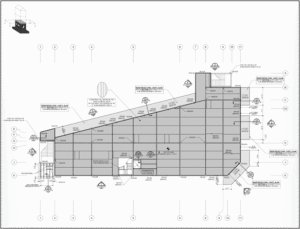

(3D models of transfer tower and conveyor gallery from design software)

Design & Detailing Strategy

1) Structural System

• Transfer Towers: Designed as braced frames with X-bracing for lateral stability.

• Conveyor Galleries: Engineered as truss systems to achieve long spans with minimal deflection and vibration.

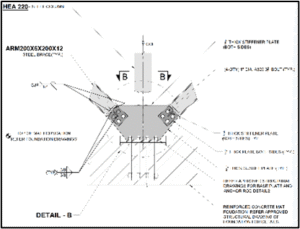

2) Connection Engineering

• Pinned-Sliding Joints:

  • One end of each gallery was pinned to transfer vertical and lateral loads.

  • The opposite end featured sliding joints with bearing plates and guide assemblies to accommodate thermal expansion and dynamic movement.

• Welded Brackets to Tower Columns:

  • Custom steel brackets were welded directly to transfer tower columns to receive gallery support.

  • These brackets ensured direct load transfer and simplified erection.

3) Foundation System

• Pile Foundations:

  • Deep cylindrical piles anchored the towers and trestles, resisting uplift and seismic base shear.

  • They were appropriately used in areas with heavy vertical loads and limited space.

• Raft Foundations:

  • Reinforced raft slabs were also used at places where space restrictions were not stringent.

4) Platform Design & Equipment Integration

To ensure seamless installation and operation of vendor-supplied machinery, platform structures were designed with critical dimensional accuracy and layout precision:

• Anchor Point Coordination:

  • Platform beams and base plates were dimensioned to match vendor anchor bolt patterns and machinery footprints.

  • BIM models included embedded plate details and bolt layouts for fabrication and site verification.

• Access & Clearance Zones:

  • Layouts incorporated service access zones, maintenance walkways, and safety buffers around machinery.

  • Clearances were validated in BIM to avoid clashes with structural members, handrails, and adjacent equipment.

• Elevation Matching:

  • Platform heights were precisely aligned with conveyor discharge points and hopper inlets to ensure smooth material transfer.

  • Level control was maintained within tight tolerances to prevent vibration, misalignment, or flow disruption.

• Load Distribution:

  • Structural framing beneath platforms was designed to support concentrated equipment loads, with reinforcement at critical bearing points.

  • Load paths were optimized to transfer forces efficiently into the foundation system.

5) BIM Precision: Inclination & Elevation Coordination

• Conveyor galleries were modeled with exact slope geometry to support gravity-assisted material flow.

• Inclination was coordinated with mechanical discharge points and process equipment, ensuring optimal alignment.

Project Outcomes

• Transfer Towers: Achieved stability under wind and seismic loads with optimized bracing and welded bracket interfaces.

• Conveyor Galleries: Lightweight trusses minimized vibration and allowed controlled movement.

• Connections: Pinned-sliding joints and bracketed supports ensured safe load transfer and flexibility.

• Foundations: Hybrid pile-raft system provided tailored resistance across varying load zones.

• BIM Precision: Enabled flawless elevation matching, slope control, and fabrication-ready detailing.

• Operational Efficiency: Seamless material flow and equipment integration across the entire system.

Summary

This project exemplifies how precision engineering, intelligent connection detailing, and BIM-driven coordination can transform complex industrial infrastructure into a resilient, efficient, and future-ready system. From seismic-resistant towers to elevation-harmonized conveyor transitions, every element was designed to perform under pressure — and built to last.

About Author

Shana Iqbal is an experienced structural engineer with 6+ years of experience in structural design, analysis, and management of diverse structural projects. Skilled in applying engineering principles to ensure safety, functionality, and cost-effectiveness, she has worked on apartments, refinery, and power plant structures, with a strong focus on innovative and sustainable design solutions. With expertise in structural analysis software, construction practices, and project coordination, she brings both technical knowledge and practical insight to every project.

The post Paradigm Engineers a High-Stability Conveyor System for a Complex Chemical Facility appeared first on Paradigm.

Designing infrastructure for power generation facilities demands precision, resilience, and adaptability, especially when the site is exposed to seismic activity and high wind forces. One of our recent projects involved the design and structural detailing of a multi-level electrical substation building, tailored to house critical electrical equipment, battery rooms, cable trenches, and utility spaces like toilets with sunken slabs. This blog outlines the engineering strategy, challenges, and solutions behind this technically demanding structure.

Project Overview

• Structure Type: Multi-level RCC-framed electrical substation building
• Design Scope:
• Accommodate high-voltage electrical equipment, control panels, battery rooms, and cable trenches across multiple floors
• Include toilets with sunken slabs, ventilation shafts, and fire-rated enclosures
• Ensure seismic resistance, wind stability, and service accessibility
• Foundation System:
• Isolated and combined footings designed based on geotechnical and seismic zone data
• Integration of cable trenches and underground utilities within the foundation layout
• Waterproofing and anti-corrosion protection for below-grade components

Primary Challenge

The primary challenge was to design a structurally resilient building that could safely support heavy electrical equipment and allow for extensive floor cutouts, sunken slabs and cable trenches—while maintaining integrity under seismic forces and high wind pressures.

Design Challenges

• Seismic Load Management: Designing for lateral forces, base shear, and drift control in a multi-level structure
• Wind Load Resistance: Ensuring stability against uplift and lateral wind pressures, especially on exposed facades
• Floor Cutouts for Equipment: Required precise structural detailing to maintain slab integrity and load paths
• Battery Room Isolation: Needed chemical-resistant flooring, ventilation, and structural separation
• Sunken Slabs in Toilets: Demanded accurate slope design, waterproofing, and plumbing integration
• Cable Trench Coordination: Trenches had to be structurally integrated without affecting foundation performance
• MEP Clash Avoidance: Underground utilities and electrical conduits required careful routing and BIM-based clash detection
• Fire Safety Compliance: Required fire-rated walls, emergency exits, and smoke extraction systems

Engineering Strategy & Structural Design

Structural Framing

• RCC frame with slab-beam-column system designed for high equipment loads, seismic forces and wind pressures
• Floor cutouts modeled in BIM to ensure zero clashes and reinforcement continuity
• Sunken slabs detailed with step-down geometry and integrated waterproofing membranes

Seismic & Wind Design

• Seismic analysis performed
• Wind load calculations done with bracing and shear walls are checked for lateral stability
• Drift limits and ductility factors considered in structural detailing

Foundation Design

• Isolated and combined footings sized for concentrated loads and seismic base shear
• Cable trench walls tied into foundation beams for structural continuity
• Soil-structure interaction considered for differential settlement control

BIM Integration

• Full 3D modeling of structure
• Clash detection performed to resolve conflicts between cable routes, plumbing, and structural members
• Construction sequencing and maintenance zones visualized for execution planning

Safety & Compliance

• Design aligned with Standard Codes
• Battery rooms designed with ventilation shafts and chemical containment zones
• Emergency access and fire-rated enclosures included in layout planning

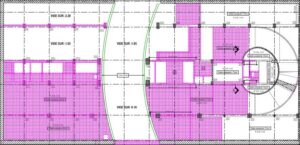

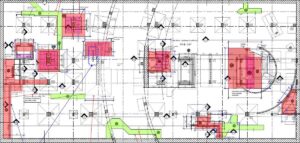

Snaps of the prepared structural drawings

Design Outcome Summary

• A multi-level substation building was successfully designed with full integration of structural and MEP systems.
• Floor cutouts and sunken slabs were incorporated without compromising structural performance.
• Seismic and wind loads were addressed through advanced analysis and detailing.
• Cable trenches and underground utilities were coordinated using BIM, ensuring zero clashes.
• The structure meets all operational, safety and regulatory requirements for power infrastructure.
• The final design supports efficient equipment layout, service access and long-term durability.

Snaps of the prepared 3D model and the wireframe obtained in STAAD for analysis

Conclusion

This project exemplifies our ability to deliver resilient and technically sound infrastructure for power generation facilities in challenging environments. Through advanced structural analysis, BIM coordination, and adaptive engineering, we created a substation building that meets modern industrial demands safely, reliably, and sustainably.

About Author

The author Athul Shaji is an experienced structural engineer having experience in structural design, analyzing, and managing diverse structural projects. Skilled in applying engineering principles to ensure safety, functionality, and cost-effectiveness. He has worked on refinery and power plant structures. With expertise in structural analysis software, construction practices, and project coordination, He brings both technical knowledge and practical insight to all projects.

The post Paradigm Engineers Multi-Level Electrical Substation Building in a Seismic and Wind-Intensive Zone appeared first on Paradigm.

We take pride in delivering engineering solutions that push the boundaries of conventional design. One of our most technically ambitious and rewarding undertakings involved the design and analysis of a multi-level warehouse, incorporating crane systems and all modeled and validated using advanced 3D tools.

This wasn’t just a theoretical exercise, it was a real-world design challenge, executed with precision by coordinating with MEP, and aimed at maximizing usable space without compromising structural integrity.

Project Overview

• Structure Type: Multi-level warehouse with integrated storage and logistics zones

• Design Scope:

• Superstructure:

  • Steel or RCC frame system based on span and load requirements

  • Roof trusses or portal frames for large clear spans

• Foundations:

  • Deep foundations (bored piles or raft) based on soil conditions

  • Pile caps and grade beams to distribute loads from columns and crane supports

• Crane System Integration

  • Overhead Gantry Cranes:

    • Design runway beams and brackets for EOT (Electric Overhead Travelling) cranes

    • Include crane columns and bracing for lateral stability

  • Monorail or Jib Cranes:

    • Localized support systems for workstation-level lifting

• Primary Challenge: Design a warehouse with cranes and other lifting mediums for storage of different hazardous substances.

Key Design Challenges

• Managing high live loads from forklifts and storage racks
• Foundation design complexity due to heavy point loads from crane columns and differential settlement risk because of uneven loading from cranes
• Navigating variable soil strata and groundwater conditions
• MEP Routing conflicts like overhead space constraints, service accessibility etc.

Engineering Strategy & Structural Design

To meet the design goals, we adopted a top-down structural approach, supported by detailed 3D modelling.

Core Design Elements:
• Crane Load accommodation by using high-strength steel beams and precast concrete girders
• Design for dynamic loads, including impact, acceleration, braking, and lateral sway
• Foundations are considered as isolated or pile foundations
• Early-stage BIM Integration: Use Building Information Modelling (BIM) from the conceptual stage to coordinate crane supports, structural elements, and MEP systems
• Dedicated Crane Pathways: Reserve overhead zones exclusively for crane runways and lifting operations, with MEP routed around or beneath these paths

3D Modelling & BIM Integration

• The entire structure was modeled using Building Information Modelling (BIM) tools
• Clash detection and tolerance checks were performed to ensure constructability
• Underground MEP utilities are integrated into the BIM model, and clash detection is performed to ensure coordination with structural elements and avoid interference during construction

Design Outcome Summary

• A structurally sound warehouse was designed with integrated crane systems for storage and services
• Crane-supporting beams and columns were optimized for dynamic loads, deflection control, and vibration resistance
• Crane-supporting beams and columns were optimized for dynamic loads, deflection control, and vibration resistance
• Structural elements were validated for seismic, wind, and operational loads using advanced analysis tools
• The design complies with IS, BS EN, and OSHA standards, ensuring safety, durability, and operational efficiency

Conclusion

This warehouse design demonstrates the integration of structural innovation and operational efficiency. Using detailed analysis, 3D modeling, and adaptive engineering, we developed a high-performance facility that meets modern industrial needs while ensuring safety and functionality.

About Author

The author Ashly Paul is an experienced structural engineer having 6+ years of experience in structural design, analyzing, and managing diverse structural projects. Skilled in applying engineering principles to ensure safety, functionality, and cost-effectiveness. She has worked on refinery and power plant structures, with a strong focus on innovative and sustainable design solutions. With expertise in structural analysis software, construction practices, and project coordination, she brings both technical knowledge and practical insight to every project.

The post Structural Analysis and Design of Warehouses with Integrated 3D Modelling by Paradigm Engineering appeared first on Paradigm.

Introduction

Circular platforms are an integral part of refinery structures. They are used to support heavy equipment, pipelines, and access systems, while also ensuring safety and stability for operational needs. Preparing accurate designs and detailed drawings for such platforms requires a blend of engineering expertise and advanced modelling tools.

Project Overview

In our company, we have successfully executed many refinery projects involving circular platforms and their foundations. Each project required close coordination with process, piping, and mechanical departments to meet the complex functional requirements.

Snaps from Model and drawings

Structural Analysis and Design

The process begins with a thorough structural analysis. Circular platforms often need to carry eccentric loads from pipelines, vessels, and rotating equipment. Our engineering team carefully evaluates:

• Load combinations (dead, live, equipment, wind, seismic, piping, snow, etc.).

• Foundation interaction, considering soil conditions.

• Dynamic effects, especially where rotating machinery is involved.

We ensure that the design complies with industry standards and project-specific guidelines. The outcome is a safe, efficient structure capable of long-term performance.

Foundations are critical for refinery platforms, especially since they support concentrated loads. Our detailing covers:

• Raft and isolated footing design.

• Anchor bolt layouts and embedment details.

• Reinforcement schedules for concrete works.

• Special detailing for vibration and heavy equipment loads.

Modelling and Detailing

Once the design is finalized, we will be converting concepts into highly detailed 3D models.

• Model primary and secondary steel members with precision.

• Generate detailed connections suitable for fabrication.

• Prepare general drawings showing anchor bolts, pedestals, and reinforcements.

• Create clash-free models by coordinating with piping and equipment layouts.

The 3D model ensures better visualization, quick revisions, and high-quality deliverables for both fabrication and erection.

Deliverables & Results

Upon completion, the following engineering outputs are generated:

• Analysis and Design results

• 3D Model

• 2D general arrangement drawings

• Erection and fabrication drawings

• Design calculation report

Conclusion

Over the years, we have successfully completed many refinery projects involving circular platforms. Each project presented unique challenges, from congested layouts to strict safety requirements. Our combination of structural analysis, design expertise, and Tekla modelling has helped us deliver accurate, constructible, and cost-effective solutions.

By integrating advanced analysis with Tekla modelling, we provide end-to-end solutions that ensure structural safety, fabrication accuracy, and ease of construction on-site.

About Author

Rinshadul Haque K P is a Structural Engineer specializing in design, Tekla modelling, and structural drawing preparation. With hands-on involvement in various industrial projects, including power plants and refineries, the author brings a practical understanding of BIM-based workflows and detailing standards. Passionate about precision and coordination, they focus on delivering efficient, high-quality structural solutions using modern tools and technologies.

Related Services

Explore More Of Our Expertise:

• • Structural Design
  • Geotechnical Consulting Firm
  • Structural Steel Detailing Services
  • Reinforcement Detailing
  • BIM Services
  • Preconstruction CAD Services
  • As Built Services

The post Paradigm’s Approach to Structural Analysis and Modelling of Circular Platforms appeared first on Paradigm.

At Paradigm, we take pride in delivering engineering solutions that challenge conventional boundaries. One of our technically demanding and rewarding projects involved structural design of a commercial steel building while strictly adhering to the initially approved structural members given by the client. Here’s how we successfully delivered it, without replacing the initially approved structural members—only by strengthening the existing steel members and adding a few additional members.

Project Overview

• Building Type: 3-Story commercial steel framed building (approx. 21,000 sq. ft.)

• Scope:

  • Proof Checking the Structural Calculations Provided by the Client: Evaluate the initially approved structural design calculations to ensure structural integrity and compliance with code requirements.

  • Retrofitting the Steel Members Used in Original Design: Utilize the already procured steel members, avoiding changes to their specifications.

  • Foundation Design: Develop a suitable foundation system tailored to the structural layout and site conditions.

• Primary Challenge: Delivering a structurally sound and compliant building by retrofitting the originally approved steel members provided by the client. This required a meticulous, iterative design process focused on strengthening existing members, adding new members where necessary, and reallocating replaced members elsewhere. All adjustments had to be achieved while maintaining project timelines, working within site constraints, and ensuring cost-effectiveness for the client.

Our Solution

Strategic Design Approach

• Preservation of Existing Materials: Retained all pre-ordered steel members to avoid wastage.

• Design Optimization: Improved structural integrity by adding supplementary elements such as bracings, strengthening plates, secondary beams, and load-distribution components.

• Smart Reallocation: Where members could not be used in their originally intended positions, they were reassigned to other suitable parts of the structure without compromising safety.

• Foundation Design: Developed a foundation system compatible with the revised structural layout and site conditions.

Execution Highlights

1. Design Review and Assessment of Original Drawings

   • Conducted a thorough review of the client’s design drawings.

   • Identified multiple structural members requiring modifications to meet safety and performance standards.

   • Documented and communicated failures with comments directly on drawings based on design analysis.

2. Client Constraint Handling

   • Recognized that steel members were already purchased based on a previous design.

   • Addressed client’s concerns about avoiding material wastage and procurement costs.

3. Strategic Redesign

   • Retained all procured members without altering specifications.

   • Revised the design by:

     • Maintaining the original structural arrangement.

     • Adding supplementary plates, bracings, and secondary supports for stability.

     • Reallocating members to positions where they could be safely and effectively used.

4. Cost-Effective Engineering

   • Delivered a safe, compliant design while minimizing additional material procurement.

   • Maximized the use of existing members in original or new positions.

5. Foundation Design

   • Designed a foundation system compatible with the revised layout.

   • Considered site-specific factors including soil conditions, load paths, and member placement.

6. Client Communication and Approval

   • Presented the revised design and its advantages.

   • Gained client appreciation for delivering an innovative and resource-conscious solution.

Engineering Tools & Coordination

• Delivered in full compliance with American Standards.

• Prepared detailed plans, cross-sections, and foundation drawings.

• Coordinated closely with the construction team to ensure smooth execution.

Sample layout and documentation of the delivered output

Conclusion

This project exemplified Paradigm’s leadership in delivering innovative engineering solutions under real-world constraints. Faced with pre-approved and pre-purchased steel members, we successfully re-engineered the design without compromising safety, functionality, or cost efficiency.

Through meticulous proof checking, strategic reallocation, and supplementary strengthening, Paradigm demonstrated its ability to set new benchmarks in resource-conscious and client-focused engineering. The outcome was a client-approved design that preserved resources and showcased our commitment to structural engineering excellence and industry leadership.

About Author

Mohammed Sufail K
Structural Engineer with 8+ years of experience in reinforced concrete, structural steel, and timber design. Specializes in delivering safe, efficient designs for residential and commercial buildings. Provides strong site support—resolving RFIs, value engineering details, and troubleshooting construction issues to ensure smooth execution.

Related Services

Explore More Of Our Expertise:

• • Structural Design
  • Geotechnical Consulting Firm
  • Structural Steel Detailing Services
  • Reinforcement Detailing
  • BIM Services
  • Preconstruction CAD Services
  • As Built Services

The post Paradigm Leads in Structural Engineering: Proof Checking and Retrofitting of a Steel Framed Structure appeared first on Paradigm.

Introduction

In modern construction, engineering challenges extend beyond conventional buildings and bridges. Structures such as hoardings, temporary formworks, and massive concrete pours demand careful design checks to ensure safety, durability, and performance under real-world loads.

Standard structural design codes provide valuable guidance, but when dealing with complex geometries and non-uniform load paths, traditional calculation methods often fall short. This is where Finite Element Analysis (FEA) steps in.

Project Overview

At Paradigm, we are doing stress analysis of special structural elements having different material properties like FRP, GRP, fibre, concrete, etc.

We have completed projects such as:

• Hoardings & Signage Frames

• Formwork for Mass Concrete

• Baggage Chutes

• Tanks

• Custom Formwork Systems

• Moulds

Structural Checks

Finite Element Analysis allows us to divide a complicated shape into smaller, manageable elements, where stresses, deflections, and load distributions can be calculated with high precision.

Analysis Methodology

At Paradigm, we have expertise in using different finite element analysis software as per clients’ requirements, ensuring compliance with relevant codes.

Key Challenges

• Accuracy in Irregular Geometries

• Load Path Understanding

• Optimisations

• Behaviour Judgements

3D View of Some of the Samples Done

Deliverables & Results

• Analysis Results

• Calculation Report

Conclusion

Finite Element Analysis has become an indispensable tool for engineers dealing with non-standard structural forms. By enabling detailed insights into stress distribution and deformation behaviour, FEA ensures that special structures like hoardings, formworks, and mass concretes are safe, economical, and code compliant.

At Paradigm, we specialize in delivering advanced FEA solutions tailored to complex structural challenges, ensuring confidence at every stage of design and construction.

About the Author

Jaya P. S. is an experienced Structural Engineer with 18+ years of hands-on experience in the design and analysis of complex steel structures, including towers, industrial facilities, and transmission infrastructure.

Backed by decades of field and software expertise, the insights here reflect practical knowledge sharpened by real-world project execution.

Our experts offer full-cycle consulting—from Finite Element modelling and code compliance to custom foundation detailing.

Related Services

Explore More Of Our Expertise:

• • Structural Design
  • Geotechnical Consulting Firm
  • Structural Steel Detailing Services
  • Reinforcement Detailing
  • BIM Services
  • Preconstruction CAD Services
  • As Built Services

  The post Paradigm Leading the Way in Finite Element Analysis for Complex Structures appeared first on Paradigm.

  ]]> https://paradigm-structural.com/paradigm-leading-the-way-in-finite-element-analysis-for-complex-structures/feed/ 0 https://paradigm-structural.com/paradigms-expertise-in-bim-modelling-from-historic-blueprints-transforming-legacy-drawings-into-digital-precision/ https://paradigm-structural.com/paradigms-expertise-in-bim-modelling-from-historic-blueprints-transforming-legacy-drawings-into-digital-precision/#respond Thu, 14 Aug 2025 08:00:54 +0000 https://paradigm-structural.com/?p=13778 Introduction Historic buildings are treasures of architectural heritage — but their original blueprints and drawings often exist only on paper, sometimes worn, incomplete, or even damaged. Preserving these structures requires a bridge between the past and the future: transforming legacy 2D drawings into intelligent, data-rich 3D BIM (Building Information Modelling) models. In paradigm, we’ve undertaken numerous projects converting century-old drawings into precise BIM models, enabling...

  Read More

  The post Paradigm’s Expertise in BIM Modelling from Historic Blueprints: Transforming Legacy Drawings into Digital Precision appeared first on Paradigm.

  ]]>

  Introduction

  Historic buildings are treasures of architectural heritage — but their original blueprints and drawings often exist only on paper, sometimes worn, incomplete, or even damaged. Preserving these structures requires a bridge between the past and the future: transforming legacy 2D drawings into intelligent, data-rich 3D BIM (Building Information Modelling) models.

  In paradigm, we’ve undertaken numerous projects converting century-old drawings into precise BIM models, enabling restoration, renovation, and ongoing maintenance with modern accuracy.

  Location: UK, Europe

  ---

  Necessity of Legacy Drawings into BIM Models

  • Preservation of Irreplaceable Information
    Old paper drawings are vulnerable to damage, loss, and fading. Digitizing them into BIM ensures that every architectural and structural detail is permanently preserved in a secure, accessible format.

  • Accuracy in Renovation & Restoration
    Paper drawings can contain discrepancies or outdated measurements. BIM allows for correction, integration with modern survey data, and precise 3D representation — crucial for restoration projects that require millimetre-level accuracy.

  • Enhanced Collaboration Across Disciplines
    Conservation architects, engineers, and contractors can work simultaneously on a shared BIM model, eliminating misinterpretations common in static 2D drawings.

  • Compliance with Modern Standards
    Many heritage and government projects now require digital as-built documentation in BIM format to meet regulatory and archival standards.

  • Lifecycle Facility Management
    BIM isn’t just for design — it becomes a living database for ongoing maintenance, retrofits, and heritage management, ensuring the building’s future is as secure as its past.

  ---

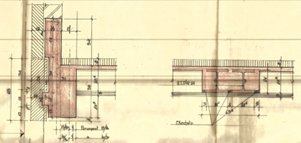

  Snaps from Inputs



  ---

  Snaps from Outputs



  ---

  Process for BIM from Historic Blueprints

  1. Collection & Digitization
     We carefully scan and digitize fragile paper blueprints and drawings using high-resolution methods.

  2. Drawing Cleanup & Verification
     Lines, symbols, and dimensions are clarified, missing details reconstructed from site surveys or archives.

  3. Point Cloud Integration (if available)
     When possible, laser scanning is combined with old drawings to achieve unmatched accuracy.

  4. BIM Modelling
     Using tools like Revit, we create an intelligent 3D model, accurately representing every architectural element — walls, columns, arches, heritage-specific ornamentation.

  ---

  Key Challenges

  • Working with incomplete or damaged blueprints by reconstructing missing details through research and on-site measurements.

  • Matching heritage architectural styles in BIM, including intricate mouldings, decorative facades, and custom elements.

  • Coordinating with heritage preservation bodies to ensure models meet conservation requirements.

  ---

  Our Strengths

  • Proven experience with heritage & historical projects

  • Skilled in various software, and point cloud integration

  • Deep understanding of structural standards

  • Ability to deliver high-LOD models for precise execution

  ---

  Conclusion

  Historic buildings are irreplaceable — and so is the knowledge locked inside their old drawings. By transforming legacy blueprints into modern BIM models, Our Company ensures that these structures are preserved, understood, and celebrated for generations to come.

  ---

  About the Author

  The author Vaisakh K V is a highly skilled Structural BIM Modelling and Detailing expert with 9+ years of experience. He has worked on diverse projects, from modern high-rises to complex industrial facilities and historically significant buildings.

  Specializing in structural BIM modelling, detailing, and coordination, he transforms traditional 2D drawings into accurate, information-rich 3D models that improve design clarity and project efficiency. His expertise in BIM software, delivering precise shop drawings, clash-free models, and high-LOD BIM outputs.

  Known for his attention to detail and problem-solving skills, he ensures that every model supports smooth construction and long-term maintenance. He is passionate about using BIM technology to bridge the gap between design and execution, helping teams work smarter and deliver better results.

  Related Services

  Explore More Of Our Expertise:

  • • Structural Design
    • Geotechnical Consulting Firm
    • Structural Steel Detailing Services
    • Reinforcement Detailing
    • BIM Services
    • Preconstruction CAD Services
    • As Built Services



  The post Paradigm’s Expertise in BIM Modelling from Historic Blueprints: Transforming Legacy Drawings into Digital Precision appeared first on Paradigm.

  ]]> https://paradigm-structural.com/paradigms-expertise-in-bim-modelling-from-historic-blueprints-transforming-legacy-drawings-into-digital-precision/feed/ 0 https://paradigm-structural.com/engineering-leadership-in-vertical-expansion-detailing-drawings-for-a-15-storey-building-strengthened-to-add-5-floors/ https://paradigm-structural.com/engineering-leadership-in-vertical-expansion-detailing-drawings-for-a-15-storey-building-strengthened-to-add-5-floors/#respond Fri, 08 Aug 2025 11:04:53 +0000 https://paradigm-structural.com/?p=13732 Introduction In a highly ambitious structural retrofit project, we were tasked with strengthening an existing 15-storey reinforced concrete building to support an additional 5 floors. This upgrade required not only rigorous engineering analysis but also a highly coordinated effort in producing detailed construction drawings that addressed new load paths, retrofitting strategies, and phased construction plans. Location: Europe Key Challenges Of all the structural elements, foundation...

  Read More

  The post Engineering Leadership in Vertical Expansion: Detailing Drawings for a 15-Storey Building Strengthened to Add 5 Floors appeared first on Paradigm.

  ]]>

  Introduction

  In a highly ambitious structural retrofit project, we were tasked with strengthening an existing 15-storey reinforced concrete building to support an additional 5 floors. This upgrade required not only rigorous engineering analysis but also a highly coordinated effort in producing detailed construction drawings that addressed new load paths, retrofitting strategies, and phased construction plans.

  ---

  Location: Europe

  ---

  Key Challenges

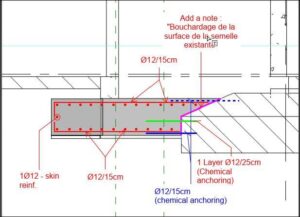

  Of all the structural elements, foundation strengthening was the most challenging:

  • Limited Accessibility: The building was already operational, limiting intrusive excavation.

  • As-Built Inconsistencies: Old foundation drawings were incomplete, and several unknowns were only discovered through scanning and controlled excavation.

  • Load Increase: Supporting 5 extra floors meant re-evaluating bearing pressures and deepening or widening existing footings.

  • Adjacent Structures: The proximity of neighbouring buildings restricted methods like piling.

  • The existing foundations had irregular geometries, non-uniform footing depths, and partial data from old drawings. We had to represent overlapping old and new elements, micropile positions, pile caps, jacketing zones, and underpinning extents — all in a tight and congested layout.

  • Another major challenge was preparing drawings for drilling through existing slabs and creating new structural walls. The drawings needed to show not just the new wall dimensions, but also precise drilling locations, cutting details, and the connection between new and old concrete. In many cases, we included enlarged sectional views, dowel bar layouts, and phased execution notes to guide site teams on how to safely break, drill, and rebuild without affecting the surrounding structure.

  • As part of the vertical expansion and structural upgrade, the design also included adding new slab projections (cantilevers or balcony extensions) to the existing floors. This added another layer of complexity to the detailing work. These projections had to be carefully integrated with the existing floor slabs, identifying the exact rebar layout in the existing slab to avoid cutting through critical reinforcement during anchoring.

  • Detailing the connection between new and old concrete, including dowel bar placement, epoxy bonding, and in some cases, additional steel brackets or angles.

  ---

  Detailing Drawing Strategy



  • All existing elements were scanned using GPR and laser surveys.

  • Old column sizes, slab thicknesses, and beam depths were confirmed on-site before being integrated into the new GA and section drawings.

  • To distinguish between existing, to-be-demolished, and new elements, we used color-coding conventions across plans and sections.

  • This was especially important for floor plans showing new stiffening walls and enlarged columns.

  • Our detailing sheets weren’t just drawings — they were construction guides:

    • Phases clearly marked

    • Details of cut-and-extend beam methods and shear dowel placement

  • Site verification is everything – drawings are only as reliable as the data behind them.

  • Foundation work always needs room for redesign – keep contingency space in your drawings and plan notes.

  ---



  Conclusion

  Strengthening a 15-storey building and preparing it for an additional 5 floors isn’t just an engineering challenge — it’s a test of discipline, innovation, and teamwork. Every line drawn on a detailing sheet represented a decision shaped by structural demands, site constraints, and practical execution.

  What made this project remarkable wasn’t just the complexity of the foundation or the scale of the retrofit — it was the synchronization of design intent with on-site reality. We weren’t just drawing reinforcements and extensions; we were crafting a blueprint for transformation, ensuring that the past and future of the building could coexist safely.

  ---

  About the Author

  Lalu M A has 23+ years of experience in the preparation of structural detailing drawings. Over the years, he has worked on a wide range of projects, including high-rise buildings, industrial structures, retrofitting works, and foundation strengthening.

  He specializes in creating clear, accurate, and practical drawings that help engineers, architects, and contractors bring their designs to life. He understands the importance of connecting design intent with site realities, especially in complex projects like vertical extensions and structural strengthening.

  With a strong focus on buildability, coordination, and site constraints, he has developed a reputation for producing drawings that not only meet technical standards but also support smooth execution on site.

  This blog is based on real project experience and reflects the lessons learned from working closely with design and construction teams.

  Related Services

  Explore More Of Our Expertise:

  • • Structural Design
    • Geotechnical Consulting Firm
    • Structural Steel Detailing Services
    • Reinforcement Detailing
    • BIM Services
    • Preconstruction CAD Services
    • As Built Services



  The post Engineering Leadership in Vertical Expansion: Detailing Drawings for a 15-Storey Building Strengthened to Add 5 Floors appeared first on Paradigm.

  ]]> https://paradigm-structural.com/engineering-leadership-in-vertical-expansion-detailing-drawings-for-a-15-storey-building-strengthened-to-add-5-floors/feed/ 0 https://paradigm-structural.com/engineering-guyed-towers-structural-analysis-and-design-including-foundations/ https://paradigm-structural.com/engineering-guyed-towers-structural-analysis-and-design-including-foundations/#respond Fri, 01 Aug 2025 07:32:46 +0000 https://paradigm-structural.com/?p=13689   Introduction In a world powered by high-speed data and satellite connectivity, the structures behind the signals matter more than ever. Guyed towers – soaring up to 600 meters height – offer an elegant and economical solution for elevating communication and meteorological equipment. Held stable by pre-tensioned cables, these slender masts are engineering marvels that balance simplicity with sophistication. This project was executed by Paradigm,...

  Read More

  The post Engineering Guyed Towers: Structural Analysis and Design Including Foundations appeared first on Paradigm.

  ]]>



  Introduction

  In a world powered by high-speed data and satellite connectivity, the structures behind the signals matter more than ever. Guyed towers – soaring up to 600 meters height – offer an elegant and economical solution for elevating communication and meteorological equipment. Held stable by pre-tensioned cables, these slender masts are engineering marvels that balance simplicity with sophistication. This project was executed by Paradigm, leveraging advanced tools and design strategies to ensure optimal performance.

  ---

  Project Overview

  • Location: UK

  • Height of tower: 600m

  • Details of Guyed Mast:
    A guyed mast is more than just a tall frame—it’s a highly optimized structure composed of:

    • A triangular or square steel lattice frame

    • Inclined pre-tensioned guy wires arranged radially (90° or 120°)

    • Bracing and vertical legs made of steel pipes or solid sections

    • Antenna mounts, lightning protection, and service platforms

  The mast can remain lightweight and easier to erect by the lateral bracing system.

  ---

  Design & Structural Checks

  Guyed towers behave like elastic vertical columns on lateral supports, but nonlinear effects dominate their structural performance:

  • Large deflections from wind (P-Δ effects)

  • Nonlinear tension-only behaviour of guy wires

  • Dynamic risks: galloping, ice shedding, and cable rupture

  • Nonlinear cable elements

  ---

  Guy Wire Pretension Strategy

  Pretension is key to structural performance and must be precisely calibrated:

  • Higher guy levels = less efficient, require wider base anchors

  • Stiffness decreases with height but increases with anchor radius

  • Iterative tuning ensures balanced force distribution

  Without proper pretension, the mast could experience instability or excessive sway.

  ---

  Load Scenarios & Code Compliance

  Compliant with BS 8100-4, guyed towers must handle:

  • Self-weight + pretension (still air)

  • Full and partial ice loads

  • Wind from multiple orientations

  All load combinations are simulated to ensure safety under the worst-case scenarios.

  ---

  Design Methodology & Optimization

  The design process blends limit state design and simulation-led refinement:

  • Adjustments in mast height, anchoring footprint, and equipment loads

  • Application of safety factors

  • Iterative design based on vibration, mass distribution, and buckling checks

  Notably, guy cables account for up to 30% of total mass, making dynamic analysis crucial.



  ---

  Foundation Engineering

  • Mast Base: Designed for high vertical compression

  • Guy Anchors: Must withstand:

    • Tension forces

    • Uplift resistance

    • Lateral and overturning forces with dynamic type

  ---

  Deliverables & Results

  Upon completion, the following engineering outputs are generated:

  • Foundation specifications (mast & guy anchors)

  • Member sizes & material grades

  • Guy wire specifications & tension forces

  • Deflection curves and dynamic performance charts

  ---

  Conclusion

  Guyed towers may seem like minimalist structures, but behind their slender profile lies a blend of precision engineering and advanced modelling. Their success depends on a synergy between design vision, material optimization, accurate simulation, and strong foundations.

  At Paradigm, we brought this vision to life by combining expert knowledge with tools like SAP2000 to analyse dynamic behaviour, fine-tune pretension strategies, and foundations that resist both vertical and lateral extremes.

  ---

  About the Author

  Jaya P S is an experienced Structural Engineer with 18+ years of hands-on experience in the design and analysis of complex steel structures, including towers, industrial facilities, and transmission infrastructure. Backed by decades of field and software expertise, the insights here reflect practical knowledge sharpened by real-world project execution.

  Our experts offer full-cycle consulting – from Finite Element modelling and code compliance to custom foundation detailing.

  Related Services

  Explore More Of Our Expertise:

  • • Structural Design
    • Geotechnical Consulting Firm
    • Structural Steel Detailing Services
    • Reinforcement Detailing
    • BIM Services
    • Preconstruction CAD Services
    • As Built Services

  The post Engineering Guyed Towers: Structural Analysis and Design Including Foundations appeared first on Paradigm.

  ]]> https://paradigm-structural.com/engineering-guyed-towers-structural-analysis-and-design-including-foundations/feed/ 0 https://paradigm-structural.com/how-paradigms-expertise-in-bim-elevates-construction-project-accuracy-and-efficiency/ https://paradigm-structural.com/how-paradigms-expertise-in-bim-elevates-construction-project-accuracy-and-efficiency/#respond Tue, 29 Jul 2025 11:53:57 +0000 https://paradigm-structural.com/?p=13628   How Paradigm’s Expertise in BIM Elevates Construction Project Accuracy and Efficiency  In the fast-paced world of construction, accuracy, efficiency, and collaboration are paramount. At Paradigm, we understand that the success of a project hinges on the precision and effectiveness of each phase, from design through to handover. As a leader in BIM services company, Paradigm has mastered the art of utilizing BIM technology to...

  Read More

  The post How Paradigm’s Expertise in BIM Elevates Construction Project Accuracy and Efficiency appeared first on Paradigm.

  ]]>

  How Paradigm’s Expertise in BIM Elevates Construction Project Accuracy and Efficiency

  In the fast-paced world of construction, accuracy, efficiency, and collaboration are paramount. At Paradigm, we understand that the success of a project hinges on the precision and effectiveness of each phase, from design through to handover. As a leader in BIM services company, Paradigm has mastered the art of utilizing BIM technology to transform the way construction projects are managed, monitored, and completed.

  Building Information Modeling (BIM) is a powerful tool for streamlining the design and construction processes, enabling seamless collaboration among all stakeholders. Paradigm’s expertise in BIM ensures that every detail of a construction project is captured digitally, facilitating smoother transitions from design to completion, and optimizing future maintenance and renovations.

  Paradigm’s Proven Process for Executing BIM Projects

  At Paradigm, our approach to BIM goes beyond basic modeling. We use advanced, precision-driven strategies to ensure that every aspect of a project is accurately represented within the BIM model, improving coordination and reducing errors during the construction phase.

  Here’s how our process works:

  1. Initial Design and Planning
     The process begins with a comprehensive understanding of the project’s design requirements. Our team collaborates with architects, engineers, and contractors to define the scope and develop the BIM model, ensuring that every detail—from structure to MEP systems—is included.
  1. BIM Model Creation and Coordination
     We create a detailed and accurate BIM model that includes architectural, structural, and MEP elements. This model serves as a digital representation of the project, enabling us to detect and resolve any clashes early in the design phase, which reduces costly revisions and delays during construction.
  1. Collaboration and Real-Time Updates
     One of the key strengths of Paradigm’s approach is our emphasis on real-time collaboration. As changes are made, the BIM model is updated immediately, allowing all project stakeholders—architects, engineers, and contractors—to work from the most current data, ensuring that everyone is aligned and informed.
  1. Quality Assurance and Finalization
     Before the project moves forward to construction, we conduct thorough checks on the BIM model to ensure accuracy and completeness. This final validation ensures that the model meets all requirements and can be seamlessly handed off for construction.

  By maintaining a consistent and transparent process throughout the lifecycle of a project, Paradigm ensures that every detail is captured and executed with the highest level of precision, reducing errors and rework.

  The Real-World Impact: Paradigm’s BIM Projects and Success Stories

  Our commitment to excellence is evident in the successful execution of BIM projects. Below are examples of how Paradigm has utilized BIM to enhance construction accuracy and efficiency:

  • Case Study 1: Residential Building Projects in Europe

  In a large-scale residential project in Europe consisting of over 30 unique buildings, BIM modeling was the cornerstone of effective coordination and design integration. Each building had distinct architectural and structural requirements, necessitating a federated modeling strategy using tools like Revit and Navisworks. The multidisciplinary teams developed high-detail BIM models to ensure consistency in geometry, spatial planning, and system interfaces across the site. Intensive model coordination sessions helped identify and resolve design clashes early, particularly between MEP systems and structural layouts, significantly improving model accuracy and consultant collaboration. Customized model templates and naming conventions were enforced to maintain uniformity across all design disciplines, while shared parameter libraries enabled seamless data exchange. By centralizing all design data in a common data environment (CDE), the project team ensured real-time model updates, traceability, and alignment throughout the design process. This robust BIM modeling service laid a strong digital foundation for downstream construction, prefabrication, and long-term facility planning.

  • Case Study 2: Power Plant Structure Design with BIM Integration
    Designing power plant structures involves managing large equipment loads, seismic considerations, and complex coordination among disciplines. Incorporating Building Information Modelling (BIM) enhances this process by enabling accurate 3D modelling, clash detection, and integrated planning. With BIM, structural, mechanical, and electrical teams work collaboratively in a shared environment, reducing errors and improving efficiency. This results in faster design cycles, better material estimation, and smoother construction execution, ultimately ensuring the power plant is delivered safely, on time, and within budget.

   Case Study 3: As Built Model from point cloud data

  Creating an accurate as-built model from 3D data is rapidly becoming a vital step in modern construction and renovation workflows. In a recent residential project, we leveraged high-resolution 3D laser scans and photogrammetry to capture existing site conditions with millimeter-level accuracy. This point cloud data was processed and converted into a detailed BIM model using Revit, allowing us to replicate the built environment exactly as constructed. Special attention was given to structural elements, MEP installations, and architectural finishes, ensuring the as-built model could serve as a reliable digital twin for facility management and future retrofits. The result was a comprehensive, data-rich model that not only reflected the physical reality of the site but also helped the client streamline maintenance planning, compliance documentation, and lifecycle asset tracking. As-built modeling from 3D data bridges the gap between physical construction and digital control, offering unparalleled precision and long-term operational value.

  Why Clients Trust Paradigm with Their BIM Projects

  At Paradigm, we’ve built a reputation for not just meeting, but exceeding client expectations. Our ability to execute BIM projects with precision and efficiency is why our clients trust us with their most complex projects:

  1. Expertise and Experience
     With over 25 years in the construction and engineering industry, Paradigm has honed its processes and developed deep expertise in managing BIM projects of all sizes. We bring unparalleled knowledge and technical know-how to every project, ensuring it is completed to the highest standards.
  1. Commitment to Accuracy and Detail
     We understand that in construction, accuracy is everything. Our team is meticulous in ensuring that every detail is captured and represented correctly in the BIM model. This commitment to precision ensures that the final project is built as designed.
  1. End-to-End Support
     From initial design through to handover, Paradigm provides end-to-end support for our clients. We’re with you every step of the way, ensuring that the BIM model reflects the most up-to-date, accurate information, and providing the resources and expertise needed to make informed decisions throughout the project.
  1. Collaboration and Transparency
     We work closely with all project stakeholders, maintaining open lines of communication throughout the project. Our clients appreciate our collaborative approach, which ensures that every team member is aligned and has access to the latest data.

  Conclusion: Transforming Construction with Paradigm’s BIM Expertise

  As the construction industry evolves, the role of BIM services continues to grow. Paradigm’s expertise in BIM technology is revolutionizing the way projects are executed, helping to deliver more accurate, efficient, and cost-effective results. By leveraging cutting-edge technology, extensive experience, and a client-centric approach, Paradigm ensures that every project is completed on time, within budget, and to the highest standards of quality.

  If you’re looking for a trusted partner to take your construction project to the next level with expert BIM services, look no further than Paradigm. Let us help you unlock the full potential of your next project.

  About Author

  The author Sathish Nair R is working as General Manager in Paradigm, a leading structural engineering consultancy dedicated to delivering innovative, efficient, and resilient solutions for complex infrastructure and industrial projects across India and beyond. With over 20 years of experience spanning civil, port, and industrial engineering, the author brings a hands-on, performance-driven approach to design and execution.

  From metro tunnels to power plants, and from urban high-rises to heavy-duty quay structures, he is passionate about turning structural challenges into sustainable opportunities. His leadership at Paradigm reflects a deep commitment to engineering excellence, digital collaboration, and integrated project delivery.

  Related Services

  Explore More Of Our Expertise:

  • • Structural Design
    • Geotechnical Consulting Firm
    • Structural Steel Detailing Services
    • Reinforcement Detailing
    • BIM Services
    • Preconstruction CAD Services
    • As Built Services

  The post How Paradigm’s Expertise in BIM Elevates Construction Project Accuracy and Efficiency appeared first on Paradigm.

  ]]> https://paradigm-structural.com/how-paradigms-expertise-in-bim-elevates-construction-project-accuracy-and-efficiency/feed/ 0 https://paradigm-structural.com/digging-deep-how-we-built-two-basements-under-a-heritage-building-without-moving-a-brick/ https://paradigm-structural.com/digging-deep-how-we-built-two-basements-under-a-heritage-building-without-moving-a-brick/#respond Fri, 18 Jul 2025 05:16:18 +0000 https://paradigm-structural.com/?p=13452   At Paradigm, we take pride in delivering engineering solutions that challenge conventional boundaries. One of our most technically demanding and rewarding projects involved the construction of two new basement levels beneath a fully standing, heritage-listed building—without altering its facade or disturbing the superstructure. This was not a theoretical case study or academic concept—it was a real project, executed under live conditions, within an urban...

  Read More

  The post Digging Deep: How We Built Two Basements Under a Heritage Building—Without Moving a Brick appeared first on Paradigm.

  ]]>

  At Paradigm, we take pride in delivering engineering solutions that challenge conventional boundaries. One of our most technically demanding and rewarding projects involved the construction of two new basement levels beneath a fully standing, heritage-listed building—without altering its facade or disturbing the superstructure.

  This was not a theoretical case study or academic concept—it was a real project, executed under live conditions, within an urban setting, and on a historically protected site. Here’s how we did it.

  Project Overview

  • Building type: Traditional 1920s brick dwelling
  • Heritage status: Listed; facade preservation mandated
  • Scope:

  Add 2 basement levels

  Retain external appearance

  Modify internal layout to suit new functional needs

  • Primary challenge: Introduce substructure beneath an active, load-bearing superstructure





  Key Challenges

  • Preserving the existing architectural facade and superstructure.
  • Avoiding disruption to neighboring properties.
  • Handling complex soil conditions (London clay, Lambeth beds, Upper Chalk).
  • Managing seasonal groundwater fluctuations.

  Our Solution: Engineering Strategy

  To ensure safety and preserve architectural integrity, we adopted a top-down construction sequence—a method where excavation happens after supporting the structure above.

  Key methods included:

  • Contiguous Pile Walling: Installed around the perimeter to act as a retaining system.
  • Underpinning: Used where adjacent plot boundaries prevented pile installation.
  • Steel Stools & RC Strip Footings: Temporarily supported internal and external load-bearing walls.
  • Pile-Supported Ground Slab: Served as a new load transfer platform for the superstructure.
  • Sequential Excavation: Carried out after the building was structurally secured from below.

  Execution Highlights

  1. Pile Construction
     Temporary and permanent piles were installed inside the structure using compact equipment due to headroom limitations.
  2. Superstructure Propping
     The building was supported in phases using the Pyford method, ensuring no settlement or cracking during transitions.
  3. Ground Floor Slab Casting
     A 350 mm thick ground slab was cast after tying into pile heads. This became the new transfer medium for building loads.
  4. Controlled Excavation
     Soil was carefully removed under the slab while monitoring pile reactions and load distribution.
  5. Second Basement Construction
     A limited area beneath the first basement was further excavated for a swimming pool and storage, with reinforced concrete walls and slabs providing structural enclosure.
  6. Load Transfer Adjustments
     New RC columns were introduced to replace certain temporary piles, ensuring long-term structural integrity.

  RC strip footings and steel stools to provide temporary support to existing structure installed



  Design & Structural Checks

  • All slabs (ground and basement) were verified for punching shear and column load capacity.
  • Temporary and permanent states were distinctly analyzed.
  • Basement walls were constructed with waterproofing detailing integrated into the contiguous pile system.

  Engineering Tools & Coordination

  Our team delivered this solution with full integration of British Standards.

  Detailed plans, cross-sections, and soil profiles were developed in tandem with the construction team to ensure alignment during execution. Special attention was given to phased work zones and construction tolerances.

  Project Results Summary

  • Two fully functional basement levels were successfully constructed beneath the existing building without altering or damaging the original superstructure or facade.
  • The heritage-listed architectural features were preserved entirely, meeting all conservation requirements.
  • Structural integrity was maintained throughout, using a combination of temporary propping, underpinning, and permanent pile-supported systems.
  • The ground floor slab now serves as a load-transfer platform, distributing the building’s weight to new piles and reinforced concrete columns.
  • Water-tight, reinforced basement enclosures were achieved using contiguous pile walls and 400 mm thick basement walls.
  • No settlement or structural distress was observed during or after construction—demonstrating the reliability of the top-down construction and support system.
  • The building now features modernized internal layouts, including a swimming pool, storage facilities, and enhanced usability—without compromising its exterior historical character.

  Conclusion

  This project stands as a testament to our ability to merge innovative engineering with heritage conservation. By combining advanced construction techniques with real-time structural adaptation, we transformed an aged building into a revitalized structure—

  With detailed design verification and adaptive construction techniques, it’s possible to meet modern demands without compromising architectural legacy.

  About Author

  The author Malini Menon P is an experienced Structural Engineer with 25+ years of experience in designing and delivering complex structures for commercial, industrial, and infrastructure projects. Skilled in the design of steel and concrete structures, with deep knowledge of seismic and wind load analysis, as well as international codes and standards. Known for leading multidisciplinary teams, managing design coordination, and resolving technical challenges across all project phases. Proven ability to deliver cost-effective, safe, and compliant structural solutions under tight schedules with excellent quality. Strong track record of mentoring team and fostering collaborative project environments. Adept in both design office work and providing solutions for onsite issues, bringing technical expertise and leadership to every stage of a project.

  Related Services

  Explore More Of Our Expertise:

  • • Structural Design
    • Geotechnical Consulting Firm
    • Structural Steel Detailing Services
    • Reinforcement Detailing
    • BIM Services
    • Preconstruction CAD Services
    • As Built Services

  The post Digging Deep: How We Built Two Basements Under a Heritage Building—Without Moving a Brick appeared first on Paradigm.

  ]]> https://paradigm-structural.com/digging-deep-how-we-built-two-basements-under-a-heritage-building-without-moving-a-brick/feed/ 0 https://paradigm-structural.com/avoiding-common-mistakes-in-structural-engineering-the-paradigm-approach/ https://paradigm-structural.com/avoiding-common-mistakes-in-structural-engineering-the-paradigm-approach/#respond Thu, 10 Jul 2025 11:35:32 +0000 https://paradigm-structural.com/?p=13372 By Sathish Nair R Posted July 9, 2025 Structural engineering demands precision, coordination, and technical accuracy at every stage. From early analysis to detailed execution, even a small misstep can lead to design inefficiencies, rework, cost overruns, or structural failure. At Paradigm, we believe that prevention is better than correction. Our process-driven approach focuses on identifying and eliminating common structural engineering mistakes—before they impact project...

  Read More

  The post Avoiding Common Mistakes in Structural Engineering: The Paradigm Approach appeared first on Paradigm.

  ]]>

  By Sathish Nair R

  Posted July 9, 2025

  Structural engineering demands precision, coordination, and technical accuracy at every stage. From early analysis to detailed execution, even a small misstep can lead to design inefficiencies, rework, cost overruns, or structural failure. At Paradigm, we believe that prevention is better than correction. Our process-driven approach focuses on identifying and eliminating common structural engineering mistakes—before they impact project delivery.

  Challenges in Structural Analysis

  The structural analysis phase lays the foundation for the entire design process. Any inaccuracies here cascade into downstream detailing and construction. Common mistakes we frequently encounter include:

  • Incorrect Support Conditions: Misrepresentation of boundary conditions leads to unrealistic behavior in analysis models.
  • Improper Member Releases: Assigning incorrect fixity or flexibility alters structural response.
  • Modeling Inaccuracies: Geometry misalignments, orientation errors, and unconnected nodes compromise model integrity.
  • Neglecting Secondary Effects: Creep, shrinkage, and long-term deformations must be accounted for to ensure design accuracy.
  • Load Misapplication: Loads applied in wrong directions or on wrong members result in misleading results.
  • Incomplete Load Combinations: Ignoring critical cases weakens the robustness of the design.
  • Unrealistic Material Properties: Assuming ideal behavior for materials leads to unsafe or uneconomical design.

  Paradigm’s Prevention Strategy:

  To minimize these issues, our engineers perform strict model audits, verify boundary conditions, and conduct peer-reviewed checks. We integrate structural modeling with design codes and software tools for accurate simulation and reliable analysis results.

  Coordination Between Design and Detailing

  A strong analysis model needs to be reflected in clear and consistent detailing. Disconnects between design intent and detailing execution often lead to miscommunication, field errors, and increased project timelines.

  Key pain points include:

  • Loss of information when translating analysis results into shop drawings.
  • Inconsistent representation of reinforcement or steel members.
  • Misalignment of detailing with site constraints or construction sequences.

  At Paradigm, our detailing team works hand-in-hand with design engineers to ensure a seamless transition. Every drawing is developed with constructability, code compliance, and site practicality in mind.



  Reinforcement Detailing: Accuracy That Builds Confidence

  Rebar detailing is one of the most vulnerable stages for error. Misplaced bars, missing cover, and incorrect bar schedules can create critical construction issues. Our approach addresses:

  • 3D Rebar Visualization: Accurate placement of reinforcement within beams, slabs, and columns.
  • Automated Bar Bending Schedules: Reducing manual errors and saving drafting time.
  • Coordination with MEP and Architectural Models: Avoiding conflicts and ensuring site-fit solutions.

  We use advanced BIM tools and structured workflows to deliver clean, clash-free, and fabrication-ready rebar detailing drawings that reduce ambiguity on-site.

  Why Paradigm?

  With over 30 years of experience in civil and structural design, Paradigm has built a legacy of delivering error-free, efficient, and high-quality engineering services. Our team applies a structured review process at every project stage—from modeling and load application to drawing production and delivery.

  Our internal quality checks ensure:

  • Model-to-drawing consistency
  • Code compliance
  • Constructability reviews
  • Multidisciplinary coordination
  • Intelligent change tracking

  We combine expertise with technology to eliminate preventable mistakes and deliver reliable results every time.

  Partner with Paradigm
  Whether you’re planning a commercial structure, industrial facility, or infrastructure project, our end-to-end structural engineering services are tailored to meet your goals with precision and clarity.

  Explore our services

  About Author

  The author Sathish Nair R is working as General Manager in Paradigm, a leading structural engineering consultancy dedicated to delivering innovative, efficient, and resilient solutions for complex infrastructure and industrial projects across India and beyond. With over 20 years of experience spanning civil, port, and industrial engineering, the author brings a hands-on, performance-driven approach to design and execution.

  From metro tunnels to power plants, and from urban high-rises to heavy-duty quay structures, he is passionate about turning structural challenges into sustainable opportunities. His leadership at Paradigm reflects a deep commitment to engineering excellence, digital collaboration, and integrated project delivery.

  Related Services

  Explore More Of Our Expertise:

  • • Structural Design
    • Geotechnical Consulting Firm
    • Structural Steel Detailing Services
    • Reinforcement Detailing
    • BIM Services
    • Preconstruction CAD Services
    • As Built Services

  The post Avoiding Common Mistakes in Structural Engineering: The Paradigm Approach appeared first on Paradigm.

  ]]> https://paradigm-structural.com/avoiding-common-mistakes-in-structural-engineering-the-paradigm-approach/feed/ 0 https://paradigm-structural.com/reinventing-waterfront-infrastructure-a-case-study-in-dockside-engineering-excellence/ https://paradigm-structural.com/reinventing-waterfront-infrastructure-a-case-study-in-dockside-engineering-excellence/#respond Fri, 04 Jul 2025 11:03:41 +0000 https://paradigm-structural.com/?p=13289 By Sathish Nair R Posted July 4, 2025 At Paradigm, we believe that even the most complex environments can be transformed through precision, innovation, and multidisciplinary collaboration. This belief was fully realized in a recent project completed in partnership with our European client—an infrastructure upgrade at an industrial waterfront. From challenging soil conditions to extreme tidal pressures, this case tested the limits of geotechnical, structural,...

  Read More

  The post Reinventing Waterfront Infrastructure: A Case Study in Dockside Engineering Excellence appeared first on Paradigm.

  ]]>

  By Sathish Nair R

  Posted July 4, 2025

  At Paradigm, we believe that even the most complex environments can be transformed through precision, innovation, and multidisciplinary collaboration. This belief was fully realized in a recent project completed in partnership with our European client—an infrastructure upgrade at an industrial waterfront.

  From challenging soil conditions to extreme tidal pressures, this case tested the limits of geotechnical, structural, and marine engineering. Here’s how intelligent design turned a constrained brownfield site into a future-ready logistics hub.

  ---

  Project Overview

  The project aimed to expand operational capacity along the River, accommodating high-load fabrication work and heavy-duty marine logistics. With limited space and poor subsoil conditions, the design team had to innovate from the ground up—literally.

  ---



  Key Challenges

  1. Soft Subsoils (Boom Clay)

  Boomse Klei—a highly plastic clay layer—posed challenges related to settlement, bearing capacity, and lateral displacement. The site’s geotechnical behavior required robust retaining and foundation strategies.Our geotechnical consulting team conducted extensive subsurface modeling and soil-structure interaction assessments.

  2. High Tidal Variability

  Water levels fluctuations introducing considerable hydrostatic pressure on quay structures and demanding watertight integrity under both operational and accidental load scenarios.

  3. Industrial Performance Requirements

  The dockside had to accommodate:

  • A 450-ton gantry crane runway

  • Access roads and trailer zones

  • Connection to the Factory, used for steel production

  • Integration of dry and insert docks for ship component handling

  ---

  Our Solution: Engineering with Precision

  Combi-Wall Quay Structure

  To create a durable retaining wall system, the team deployed a combi wall consisting of:

  • Steel tubular piles (Ø1829 mm, X52)

  • AZ18 S355 sheet piles

  • Anchor system: Titan 40/20 ground anchors, spaced at 1.25 m with a capacity of 230 kN/anchor

  This hybrid system provided the strength of large-diameter pipes with the interlocking capability of sheet piles—ensuring both stiffness and watertightness across the entire quay face.

  Soil Reinforcement and Stabilization

  To counteract clay-based settlement and provide a stable working platform:

  • Geogrid-reinforced granular layers were used in MSE (Mechanically Stabilized Earth) zones

  • Gravel beds served as high-stiffness base materials beneath structural loads

  • Boom clay properties were modeled using advanced FEM tools

  Concrete & Structural Integration

  Reinforced concrete slabs and prefabricated foundations supported steel columns, crane rails, and structural loads throughout the site. Anchor bolt sizing and grout pad detailing followed Eurocode 3 standards for steel stability during all assembly phases. These were supported by structural steel detailing drawings tailored for dockside assembly constraints.

  Our rebar detailing services ensured accurate placement of reinforcement and reliable anchorage in all structural elements.

  ---

  Engineering Tools & Coordination

  Our team delivered this solution with full integration of:

  • Eurocode 1 – Load combinations and environmental actions

  • Eurocode 3 – Steel structure design and detailing

  • Eurocode 7 – Geotechnical assessment and safety verification

  Detailed plans, cross-sections, and soil profiles were developed in tandem with the construction team to ensure alignment during execution. Special attention was given to phased work zones and construction tolerances.

  ---

  Results: A Future-Ready Industrial Platform

  The upgraded dock now supports:
  Efficient loadout of oversized steel components
  Secure docking of marine structures
  Safe, durable foundation for a 450T gantry crane
  Long-term geotechnical and structural performance under variable conditions

  ---

  Conclusion

  This case exemplifies the transformative power of structural engineering when precision, collaboration, and creativity meet. At Paradigm, we are proud to contribute to projects that redefine what’s possible at the interface of land, water, and industry.

  Looking to bring clarity to complexity on your next infrastructure challenge?
  Get in touch with Paradigm—and let’s build something extraordinary.

  About Author

  The author Sathish Nair R is working as General Manager in Paradigm, a leading structural engineering consultancy dedicated to delivering innovative, efficient, and resilient solutions for complex infrastructure and industrial projects across India and beyond. With over 20 years of experience spanning civil, port, and industrial engineering, the author brings a hands-on, performance-driven approach to design and execution. From metro tunnels to power plants, and from urban high-rises to heavy-duty quay structures, he is passionate about turning structural challenges into sustainable opportunities. His leadership at Paradigm reflects a deep commitment to engineering excellence, digital collaboration, and integrated project delivery.



  The post Reinventing Waterfront Infrastructure: A Case Study in Dockside Engineering Excellence appeared first on Paradigm.

  ]]> https://paradigm-structural.com/reinventing-waterfront-infrastructure-a-case-study-in-dockside-engineering-excellence/feed/ 0 https://paradigm-structural.com/why-you-should-outsource-civil-engineering-services-to-india-and-how-to-ensure-quality/ https://paradigm-structural.com/why-you-should-outsource-civil-engineering-services-to-india-and-how-to-ensure-quality/#respond Mon, 30 Jun 2025 05:36:08 +0000 https://paradigm-structural.com/?p=13229 In the era of globalization, businesses are constantly seeking smarter ways to optimize efficiency, reduce costs, and deliver high-quality outcomes. One of the most strategic moves for architectural,construction and consultancy firms today is to outsource civil engineering services to specialized partners abroad. Among global destinations, India stands out as a leading hub for civil engineering outsourcing—offering a blend of technical expertise, cost advantage, and scalable...

  Read More

  The post Why You Should Outsource Civil Engineering Services to India — And How to Ensure Quality appeared first on Paradigm.

  ]]>

  In the era of globalization, businesses are constantly seeking smarter ways to optimize efficiency, reduce costs, and deliver high-quality outcomes. One of the most strategic moves for architectural,construction and consultancy firms today is to outsource civil engineering services to specialized partners abroad. Among global destinations, India stands out as a leading hub for civil engineering outsourcing—offering a blend of technical expertise, cost advantage, and scalable resources. In this blog, we explore why India is a preferred choice and how to maintain quality while outsourcing.

  What Does Outsourcing Civil Engineering Services Involve?

  Outsourcing civil engineering services refers to contracting external, often offshore, teams to handle core functions such as:

  • Structural analysis and design
  • Geotechnical investigations
  • Quantity surveying and estimation
  • BIM and CAD drafting
  • Construction documentation and permitting
  • Infrastructure planning and detailing

  These services are typically executed by engineering consultants or firms in countries like India, who work closely with the client’s team to ensure project-specific compliance and performance.

  Why Choose India for Civil Engineering Services?

  India has emerged as a global engineering outsourcing leader for several compelling reasons:

  1. Highly Skilled Talent Pool

  India produces thousands of civil engineers every year with specializations in:

  • Structural engineering
  • Transportation and infrastructure
  • Environmental and geotechnical design
  • Construction management
  • BIM and CAD modeling

  This wide talent base ensures you can find the right expertise for any project type or complexity.

  2. Cost Advantage

  Outsourcing to India allows companies to save significantly on:

  • Salaries and overheads
  • Training and recruitment costs
  • Software licensing and infrastructure

  These savings can range from 30% to 60%, depending on the scope and complexity of the project.

  3. Advanced Software Capabilities

  Indian engineering firms are adept at using industry-standard tools like:

  • AutoCAD, Civil 3D, Revit
  • STAAD.Pro, ETABS, SAP2000
  • Tekla Structures
  • MS Project, Primavera
  • Automation Tools

  Access to licensed software and trained professionals ensures deliverables meet international benchmarks.

  4. Familiarity with Global Standards

  Reputed Indian firms work across regions and are well-versed in:

  • IS codes (Indian Standards)
  • ACI, ASCE, ASTM (American Standards)
  • BS, Eurocodes
  • IRC, AASHTO (for infrastructure)

  This allows seamless collaboration with international architects, contractors, and consultants.

  5. Time Zone Advantage and Flexibility

  Working with Indian firms provides a follow-the-sun model, enabling round-the-clock progress. Flexible engagement models—like fixed price, hourly billing, or dedicated team structures—further streamline collaboration.

  How to Ensure Quality When Outsourcing

  While the benefits of outsourcing to India are significant, ensuring quality is equally important. Here are steps to help you choose the right partner and manage delivery:

  1. Analyse Technical Capabilities Thoroughly

  • Request project samples or portfolios
  • Assess familiarity with the tools and standards relevant to your region
  • Ask about domain expertise (e.g., residential, commercial, infrastructure)

  Choose firms with proven experience in similar project types.

  2. Evaluate Communication and Project Management

  Effective communication is key. Look for partners that provide:

  • Dedicated project coordinators
  • Scheduled review calls and updates
  • Documentation on delivery timelines and milestones

  Project tracking tools (like Asana, Trello, or MS Project) are also signs of a professional workflow.

  3. Insist on Quality Assurance Processes

  Top-tier firms have in-house QA/QC procedures, including:

  • Peer reviews and technical audits
  • Code compliance checks
  • Design validation and revision tracking
  • ISO Certification

  This ensures that every output—be it a drawing, model, or calculation—is checked for accuracy before submission.

  4. Protect Data and Intellectual Property

  Ensure your outsourcing partner has robust protocols for:

  • NDAs and service-level agreements
  • Secure data transfer and storage
  • Confidentiality and IP protection policies

  This is especially important when working on sensitive or proprietary projects.

  5. Start with a Pilot Project

  Before committing to a long-term partnership, consider assigning a small trial project to evaluate:

  • Delivery quality
  • Adherence to timelines
  • Communication efficiency
  • Technical accuracy

  This helps you build trust and understand the working dynamics before scaling.

  Key Sectors Benefiting from Outsourcing to India

  India’s civil engineering service providers cater to a wide range of sectors, including:

  • Real estate and commercial construction
  • Industrial and warehousing
  • Urban infrastructure and smart cities
  • Water supply and environmental engineering
  • Transportation: highways, bridges, airports

  This versatility makes India a go-to outsourcing destination for both private and public sector projects worldwide.

  Final Checklist: Choosing the Right Outsourcing Partner

  Before finalizing an Indian outsourcing firm, ask:

  • Do they have verifiable global project experience?
  • What quality control measures are in place?
  • Are they responsive and proactive in communication?
  • Do they align with your standards and timelines?
  • Can they scale with your project growth?

  About Paradigm

  Paradigm, based in Kochi, Kerala, India, offers a wide spectrum of civil engineering, structural design, and BIM services to clients across the globe. Their experienced team works seamlessly with international partners to deliver:

  • Structural and geotechnical designs
  • Detailed CAD and Revit models
  • BIM coordination and documentation
  • Steel and rebar detailing
  • Project-specific quality assurance

  With a commitment to technical excellence, client satisfaction, and global collaboration, Paradigm is a trusted partner for civil engineering outsourcing.

  Learn more at paradigm-structural.com

  Related Services

  Explore More Of Our Expertise:

  • • Structural Design
    • Geotechnical Consulting Firm
    • Structural Steel Detailing Services
    • Reinforcement Detailing
    • BIM Services
    • Preconstruction CAD Services
    • As Built Services

  The post Why You Should Outsource Civil Engineering Services to India — And How to Ensure Quality appeared first on Paradigm.

  ]]> https://paradigm-structural.com/why-you-should-outsource-civil-engineering-services-to-india-and-how-to-ensure-quality/feed/ 0 https://paradigm-structural.com/advantages-of-outsourcing-steel-detailing-services/ https://paradigm-structural.com/advantages-of-outsourcing-steel-detailing-services/#respond Fri, 13 Jun 2025 09:17:50 +0000 https://paradigm-structural.com/?p=12971 As the demand for fast, efficient, and error-free construction grows, many developers, fabricators, and contractors are opting to outsource steel detailing services rather than manage them in-house. Contracting a specialized steel detailing firm not only reduces overhead but also ensures high levels of precision and compliance with global standards. In this blog, we explore the key advantages of outsourcing steel detailing and why it’s a...

  Read More

  The post Advantages of Outsourcing Steel Detailing Services appeared first on Paradigm.

  ]]>


  As the demand for fast, efficient, and error-free construction grows, many developers, fabricators, and contractors are opting to outsource steel detailing services rather than manage them in-house. Contracting a specialized steel detailing firm not only reduces overhead but also ensures high levels of precision and compliance with global standards. In this blog, we explore the key advantages of outsourcing steel detailing and why it’s a smart move for modern construction projects.

  What Are Outsourced Steel Detailing Services?

  Steel detailing services involve the preparation of detailed drawings and 3D models for steel fabricators and erectors. This includes shop drawings, erection plans, fabrication details, bolt summaries, and material lists. Contracting this service means hiring a third-party detailing firm or consultant to handle this critical phase of the project.

  These specialists use advanced software such as Tekla Structures, SDS/2, AutoCAD, Advance Steel and Revit to generate precise outputs that feed directly into fabrication and construction.



  Key Benefits of Outsourcing Steel Detailing Services

  Outsourcing steel detailing has become a strategic choice for construction firms worldwide. Here are the top advantages:

  1. Access to Specialized Expertise

  Professional steel detailing companies focus solely on structural steel modeling and documentation. Their teams are highly trained in:

  • Complex connection design
  • Code compliance (AISC, NISD, IS codes)
  • Coordination with architectural and MEP models
  • BIM-integrated workflows

  This depth of expertise translates to fewer errors, reduced rework, and smoother project execution.

  2. Cost Efficiency

  By outsourcing, firms can:

  • Avoid investing in expensive detailing software
  • Eliminate costs of hiring and training full-time staff
  • Scale resources up or down as project load fluctuates

  This significantly reduces overhead while ensuring high-quality deliverables.

  3. Improved Turnaround Time

  Contracted detailing teams work across time zones and often operate with dedicated project managers and round-the-clock production teams, enabling faster turnaround and quicker revision cycles.

  This agility is especially beneficial when working on tight deadlines or last-minute design changes.

  4. Enhanced Accuracy and Quality Control

  Top-tier steel detailing firms have multi-stage QA/QC processes to check every detail of shop and erection drawings. Their outputs are reviewed by experienced checkers using both software validation and manual verification methods.

  This helps to:

  • Prevent costly on-site errors
  • Improve fabrication accuracy
  • Ensure consistency across drawing sets

  5. Integration with BIM and 3D Modeling

  Outsourced detailing services often include BIM compatibility, allowing seamless integration with the broader project model. This enables:

  • Clash detection with architectural and MEP elements
  • Coordination of erection sequences
  • Better visualization for stakeholders

  Such integration adds immense value during both the design coordination and construction phases.



  Applications Across Sectors

  Outsourced detailing services are used in a variety of sectors:

  • Commercial and residential buildings
  • Industrial plants and warehouses
  • Infrastructure projects like bridges and airports
  • Oil & gas and power facilities
  • Pre-engineered building systems

  Their versatility makes them a preferred choice for both local and international projects.

  Risk Mitigation and Accountability

  With a reputable detailing partner, responsibilities are clearly defined, and there is a contractual obligation to deliver error-free drawings. Most professional firms are also insured against project liability, offering further protection to the client.

  Final Checklist: Why You Should Outsource

  If you’re still considering whether to outsource your steel detailing work, ask yourself:

  • Do we lack the in-house expertise to manage complex detailing tasks?
  • Are our current processes falling short in terms of cost-efficiency and scalability?
  • Could we benefit from faster turnaround times and greater drawing accuracy?
  • Do we want to integrate BIM workflows to improve coordination and project outcomes?

  If the answer to any of these is yes, outsourcing may be the right step forward.

  About Paradigm

  Paradigm, based in Kochi, Kerala, India, is a leading structural engineering consultancy offering comprehensive steel detailing services.

  With a strong commitment to precision, turnaround, and international compliance, Paradigm has supported a wide range of global clients across commercial, industrial, and infrastructure projects.

  Learn more at paradigm-structural.com

  Related Services

  Explore More Of Our Expertise:

  • • Structural Design
    • Geotechnical Consulting Firm
    • Structural Steel Detailing Services
    • Reinforcement Detailing
    • BIM Services
    • Preconstruction CAD Services
    • As Built Services

  The post Advantages of Outsourcing Steel Detailing Services appeared first on Paradigm.

  ]]> https://paradigm-structural.com/advantages-of-outsourcing-steel-detailing-services/feed/ 0 https://paradigm-structural.com/the-impact-of-revit-bim-on-structural-engineering-and-reinforcement-detailing/ https://paradigm-structural.com/the-impact-of-revit-bim-on-structural-engineering-and-reinforcement-detailing/#respond Thu, 29 May 2025 09:41:10 +0000 https://paradigm-structural.com/?p=12632 Understanding Structural Revit Modeling and Drawing Extraction In traditional workflows, structural engineers produce 2D drawings that often lead to inconsistencies and rework. Revit changes this by providing a 3D structural model that serves as a single source of truth. Every beam, column, slab, and foundation is modeled with real-world properties and relationships. Key Benefits: Accuracy & Consistency: All drawings are derived directly from the BIM...

  Read More

  The post The Impact of Revit BIM on Structural Engineering and Reinforcement Detailing appeared first on Paradigm.

  ]]>

  Understanding Structural Revit Modeling and Drawing Extraction

  In traditional workflows, structural engineers produce 2D drawings that often lead to inconsistencies and rework. Revit changes this by providing a 3D structural model that serves as a single source of truth. Every beam, column, slab, and foundation is modeled with real-world properties and relationships.

  Key Benefits:

  • Accuracy & Consistency: All drawings are derived directly from the BIM model, ensuring they remain accurate and aligned throughout the project lifecycle.
  • Efficiency: Changes in the model automatically update all relevant documentation, saving valuable time and reducing rework.
  • Improved Coordination: Integration with architectural and MEP models enables clash detection and multidisciplinary coordination.
  • Clear Communication: Enhanced visualization leads to better understanding and communication between design and construction teams.

  Structural modeling in Revit is not just a representation—it’s a dynamic, data-rich digital twin that drives every stage from concept to construction.



  Rebar Detailing in Revit

  Rebar detailing is one of the most critical yet traditionally time-consuming aspects of structural engineering. Revit transforms this process by allowing 3D rebar detailing to be placed accurately within structural components. Engineers can visualize, schedule, and document reinforcement in a clear and coordinated manner.

  Why Revit for Rebar Detailing?

  • 3D Visualization: Reinforcement is placed directly into the 3D model, reducing ambiguity and ensuring constructibility.
  • Automation: Revit automates the generation of bar bending schedules and shop drawings, saving significant drafting time.
  • Accuracy: Design changes update rebar layouts and schedules automatically, minimizing manual errors.
  • Coordination: Rebar clashes with other structural or MEP components can be detected early in the modeling phase.

  Revit’s rebar tools offer unparalleled precision and speed, making it an essential tool for structural detailing.

  Role of Revit in Streamlining Construction Documentation

  Revit’s parametric nature enables highly detailed construction documentation to be extracted directly from the model. This includes:

  • General arrangement drawings
  • Sectional views
  • Rebar Detailing drawings
  • Bar bending schedules
  • Quantity take-offs

  All views are interlinked—change one, and everything updates. This greatly reduces errors, improves project control, and facilitates faster approvals and construction readiness.



  Applications and Challenges Addressed by Revit BIM Services

  Common Challenges:

  • Complex structural geometries
  • Miscommunication between disciplines
  • Cost and time overruns due to design changes
  • Coordination issues between architectural, structural, and MEP elements

  How Revit Solves Them:

  • Comprehensive 3D Modeling: Offers a detailed, accurate model of all structural elements.
  • Clash Detection: Identifies potential conflicts before construction begins.
  • Automated Drawings and Schedules: Improves precision and reduces rework.
  • Centralized Data: Ensures all stakeholders are on the same page.

  Benefits of Revit BIM Services for Structural Projects

  • Scalability: Services are tailored to suit both small-scale and complex projects.
  • Cost Efficiency: Automated workflows reduce time, effort, and cost of documentation.
  • High Quality: Revit ensures industry-standard deliverables that are accepted globally.

  • Design Precision: Enables accurate revit 3d modeling and revit detailing to minimize errors.
  • Stakeholder Visualization: Enhanced 3D views improve communication and project clarity.
  • Turnaround Speed: Streamlined processes accelerate project timelines and delivery.
  • Platform Integration: Seamlessly connects with structural analysis and construction tools.

  Future Trends in Revit and Structural BIM

  As the AEC industry continues its digital transformation, Revit is evolving rapidly, integrating with technologies like:

  • AI and Machine Learning: For design automation and intelligent suggestions
  • IoT Integration: Real-time monitoring of construction elements
  • Virtual Reality (VR) and Augmented Reality (AR): For immersive visualization
  • 4D and 5D BIM: Incorporating time and cost into the modeling process
  • Sustainable Design Analysis: Simulating energy, lighting, and material impact

  These innovations are making Revit an indispensable platform for intelligent, sustainable construction.



  Shaping the Future of Structural Projects Through Revit BIM Services

  The transformative impact of Autodesk Revit in the AEC industry is evident in the way it has redefined structural modeling, drawing extraction, and rebar detailing. By integrating real-time 3D modeling with intelligent data, Revit streamlines workflows, enhances collaboration, and delivers highly accurate and coordinated construction documentation. The ability to visualize, simulate, and automate every phase of a structural project leads to improved decision-making, fewer errors, and significant time and cost savings.

  As the construction industry continues to embrace digital transformation, the role of Revit BIM services in driving innovation and efficiency will only grow. From commercial towers to infrastructure projects, Revit is enabling smarter, faster, and more sustainable construction across the globe.

  Paradigm, with over 30 years of experience in Civil & Structural Engineering, is at the forefront of delivering advanced Revit 3D modeling services, rebar detailing in Revit, and drawing extraction for clients in India and overseas. Our team is proficient in the latest software tools, ensuring every project meets global quality standards with precision and efficiency. Whether you’re planning a small scale or a large-scale project, our Revit BIM expertise helps bring your vision to life—on time and within budget.

  Partner with Paradigm to experience the power of intelligent modeling, accurate detailing, and seamless project delivery through our tailored Revit BIM services.

  Related Services

  Explore More Of Our Expertise:

  • • Structural Design
    • Geotechnical Consulting Firm
    • Structural Steel Detailing Services
    • Reinforcement Detailing
    • BIM Services
    • Preconstruction CAD Services
    • As Built Services

  The post The Impact of Revit BIM on Structural Engineering and Reinforcement Detailing appeared first on Paradigm.

  ]]> https://paradigm-structural.com/the-impact-of-revit-bim-on-structural-engineering-and-reinforcement-detailing/feed/ 0 https://paradigm-structural.com/bim-for-construction-projects-is-redefining-the-building-industry/ https://paradigm-structural.com/bim-for-construction-projects-is-redefining-the-building-industry/#respond Thu, 08 Aug 2024 12:18:44 +0000 https://paradigm.in/?p=12161 In the Architecture, Engineering, and Construction (AEC) industries, where efficiency, innovation, and sustainability are demanded, BIM has redefined project delivery through digital design, visualization, and management. It is the latest advancement in the building industry that incorporates people and technology to streamline time and cost, improve efficiency in builds, and change how teams share information, the processes used, and the management of workflows. What is...

  Read More

  The post How BIM for Construction Projects is Redefining the Building Industry appeared first on Paradigm.

  ]]>


  In the Architecture, Engineering, and Construction (AEC) industries, where efficiency, innovation, and sustainability are demanded, BIM has redefined project delivery through digital design, visualization, and management. It is the latest advancement in the building industry that incorporates people and technology to streamline time and cost, improve efficiency in builds, and change how teams share information, the processes used, and the management of workflows.

  What is BIM?

  BIM, or Building Information Modeling, is a 3-D model-based process that gives AEC professionals the insight and tools to plan efficiently, design, construct, and manage buildings and infrastructure.

  Unlike CAD drawings, BIM encompasses spatial relationships, geographic information, quantities, and properties of building components, enabling a detailed simulation of the construction project in a virtual environment. Globally, BIM is leveraged in some of the most impressive and complex projects. From skyscrapers to airports, it is being utilized in some of the most complex projects.

  In this blog, we will take a closer look at how BIM is used for construction projects, its applications and benefits, and the future trends in BIM for construction.

  Understanding BIM Services

  BIM facilitates better communication as changes in the model are updated in real-time, providing synchronized information to every member working on the project. This, in turn, leads to more accurate planning, effective project execution, and the enhancement of overall building quality.

  BIM services include a variety of tools, processes, and technologies used to create and manage the digital model of the project. The key components of BIM services are:

  • 3-D Modeling: The 3-D model, which is the core of BIM services,  consists of architectural, structural, and Mechanical, Electrical, and Plumbing (MEP) services. Architectural modeling deals with the aesthetics and functionalities of the building, while Structural modeling focuses on the strength and stability of the building, and incorporates beams, columns, and foundations. MEP modeling, on the other hand, examines the operational aspects of the building, such as HVAC systems, electrical wiring, piping, and water management. These models serve in making decisions from the initial design stage to the end of the construction phase.

  • Coordination: BIM services facilitate collaboration among various teams including architects, engineers, contractors, and stakeholders. This helps streamline the process, reducing errors, and minimizing conflicts during various phases.
  • Simulation: A transformative aspect of BIM service, it enables the stakeholders to visualize the project in 3-D and simulate various scenarios to assess the design and identify potential issues. Visualization helps the stakeholders to make informed decisions. Various features like energy, lighting, structural integrity, etc, are simulated to optimize the performance.

  Role of BIM in Streamlining Construction Processes

  BIM has the upper hand in streamlining construction processes, enhancing collaboration, and optimizing project outcomes. Here’s how BIM helps in strategizing building:

  • Clash detection to reduce design errors: This is one of the most notable features of BIM. Traditional methods like blueprints and CAD often result in unforeseen issues, such as the intersection of different systems, which leads to clashes that can halt the construction process. BIM software automatically detects potential conflicts before the construction begins. Identifying these clashes virtually and resolving them helps in reducing a significant number of design errors, saving time and resources.


  • Optimized construction scheduling: BIM enables the optimization of construction sequences and schedules with greater precision and accuracy. The 4D and 5D BIM simulations allow visualization of the construction process, integrating the scheduling information to create a realistic timeline and sequence. This permits better resource allocation, planning, and logistics management, resulting in improved project efficiency and cost control.

  Application of BIM in Construction

  Each sector poses unique challenges, ranging from complex designs to strict budgets and constrained timelines. BIM offers a thorough approach to addressing these challenges faced during construction. Some of the major challenges faced include:



  • Complex designs: Large-scale projects are often accompanied by complex and multifaceted designs. The intricate architectural designs, MEP systems, and interior layouts demand attention to detail and deep understanding.
  • Budget and timeline constraints: Cost overruns and delays are common issues faced across the construction industry.
  • Integration of various systems: Inefficiencies in integrating architectural designs can lead to conflicts during different phases of construction, which require costly and time-consuming adjustments.

  BIM technology provides complete solutions to the challenges faced, smoothening the operations. These may include BIM updates or as-built drawings for project handover.


  Design Optimization and Comprehensive Modeling

  • Clash Detection: The design conflicts are identified at an early stage by leveraging virtual simulations. This permits the efficient resolution and optimization of layouts to enhance functionality and aesthetics.
  • Integration of Systems: BIM facilitates the integration of all projects in a single model, ensuring the coherence and harmonious functioning of the elements.

    Enhanced Collaboration and Coordination

  • Streamlined Workflow: The efficiency is enhanced with BIM technology, leading to a reduction of redundant meetings and communications, streamlining the construction process.
  • Real-Time Monitoring: The progress tracking within the BIM environment facilitates proactive decision-making, mitigating risks and avoiding delays.

  Benefits of BIM in Construction & Refurbishment

  Building Information Modeling is implemented throughout the project’s lifespan, integrating different teams, processes, and information, to achieve better results through design and as-built documentation



  Why BIM is Invaluable During Commercial Property Refurbishment Projects:

  • Risk Reduction: Since BIM helps in the early detection of potential issues, before the construction or refurbishment, it saves time and cost.
  • Cost Estimation: With detailed representations, cost estimations can be done more accurately.
  • Enhanced Coordination: Identifying clashes before they occur on-site aids in smooth operations and reduces conflicts.
  • Sustainability: BIM technology assists in evaluating the environmental impact and sustainability of refurbishment.

  How BIM Services Benefit Contractors for Construction Projects:

  • Improved information sharing: The centralized information system ensures that everyone involved in the project is on the same page.
  • 3-D visualization: The immersive 3-D visualization allows the stakeholders to get a better understanding of the project’s design and functionality. This leads to better decision-making, which results in more efficient designs, fewer design changes, and ultimately, cost savings.
  • Efficient resource management: Optimized use of materials, manpower, and machinery increases efficiency.
  • Clash detection: The identification of potential clashes in the design phase can prevent costly changes and delays during construction.

  BIM’s Role in Improving Collaboration and Communication:

  • Updated information is accessible to all the project members in real-time.
  • BIM fosters a collaborative culture, through instant updates ensuring that everyone is working from the latest details.
  • Enhanced visual communication offered by BIM helps stakeholders understand the complex structure.
  • Data can be accessed remotely by team members, with the help of cloud-based BIM solutions.

  BIM offers multifaceted benefits in the construction industry, that enhance performance. It not only optimizes the structural design and building processes, but also enhances the guest experience and property management. It also improves collaboration, communication, and visualization, resulting in the completion of the projects in a cost-effective, and efficient manner. All these benefits spanning across project stages, from initial design to facility management post-completion, make BIM an indispensable tool in the construction & refurbishment industry.

  Future Trends in BIM for Construction



  BIM technology offers significant benefits and holds promise for even greater advantages in the future. However, accurately forecasting the scope of its future advancements remains challenging, considering the numerous areas where it can enhance its capabilities. Nonetheless, the multitude of applications of BIM can profoundly influence construction management, implying that the technology is here to stay.

  With the technological advancements and digital transformations in the AEC industry, BIM implementation rates are steadily increasing. Furthermore, globally, there’s an effort to minimize construction waste, much of which stems from inefficiencies in the supply chain, clashes, and rework. A BIM environment can mitigate these challenges, paving the way for a more efficient future.

  The integration of Artificial Intelligence (AI) and the Internet of Things (IoT) has turned the focus on sustainable and green building designs, along with innovative concepts, visualization, and project management.

  • Task automation: AI algorithms are utilized to automate complex tasks, thereby reducing manual errors and increasing productivity.
  • Sustainable & green designs: As environmental concerns are increasing at an alarming rate, the AEC industry is turning to BIM to design buildings that are more sustainable. The real-world simulation offered by BIM helps in understanding the energy consumption, to design cost-effective and environmentally friendly buildings.
  • Real-time data collection: IoT helps to collect real-time data, enriching BIM.
  • Photorealistic visualization: BIM technology renders photorealistic images that aid the stakeholders in experiencing the design in great detail. This has drastically improved the decision-making process.
  • Immersive designs: Virtual Reality (VR), and Augmented Reality (AR) are becoming an integral part of BIM, offering an immersive experience.
  • 4D & 5D BIM: Project management within the construction industry has been remolded through the integration of 4D & 5D BIM. The 4th dimension (time), and the 5th dimension (cost) are now added to BIM models to provide insights on the schedule and budget of the project. This enables more strategic planning.
  • Location planning: Before starting the construction of new buildings, BIM considers factors like sunlight exposure, wind patterns, and proximity to amenities through simulation to help planners choose the best locations.


  AI and IoT are reshaping how data is processed, especially in companies offering Scan to BIM services that focus on digitizing existing buildings.

  Shaping the Future of Construction Projects Through BIM Services


  The transformative effect of BIM is evident in the efficiency, innovation, and collaboration in the industry traditionally hindered by delays, cost overruns, and communication barriers. It has provided a dynamic 3-D model-based process for AEC professionals, and insights to plan and implement more effectively. The centralized information system improves decision-making through enhanced communication and reducing conflicts during different phases.

  As we look towards the future, the role of BIM in shaping the construction industry continues to grow, even though its real potential is yet to be realized. Moreover, in an era where sustainability has become a buzzword, partnering with a BIM service provider is crucial.

  Paradigm, a company at the forefront of BIM services, Rebar detailing services, Steel detailing services, CAD Services, As-built Drawing Services,  Geotechnical Design & consulting Services with the experience of more than 25 years in the industry, ensures that your projects are sustainable and efficient. We offer all the Civil & Structural Engineering services at an affordable rate, without compromising on quality.

  FAQs

  1. What is an information model in BIM?

      It is the digital representation of the physical and functional characteristics of a building.

  2.What is the effect of Building Information Modeling on reduced construction time costs?

      Several mechanisms like clash detection, automatic extraction of quantities from the virtual model, prefabrication, modular construction, etc, have a significant impact on reducing cost and        delays.

  3. How does BIM affect construction projects?

  From the initial design phase to the final construction phase, BIM has a significant impact on the construction projects. It serves as a centralized platform for effective communication between various teams.

  4. How does BIM help in reducing the cost of construction?

  Through improved coordination, accurate estimations, optimized sequencing & planning, streamlined change management, reduced material waste, etc, the implementation of BIM helps reduce construction costs.

  5. Are BIM and Revit the same?

  No, BIM and Revit are not the same. While BIM is a process and methodology of creating 3D visuals, Revit is a specific software developed by Autodesk for BIM.

  6. How do you charge for BIM services?

  The cost for each project differs with the requirements. It depends on various factors like the complexity of the project, the scope of services, the level of detail required, and the expertise of the service provider.

  Related Services

  Explore More Of Our Expertise:

  • • Structural Design
    • Geotechnical Consulting Firm
    • Structural Steel Detailing Services
    • Reinforcement Detailing
    • BIM Services
    • Preconstruction CAD Services
    • As Built Services

  The post How BIM for Construction Projects is Redefining the Building Industry appeared first on Paradigm.

  ]]> https://paradigm-structural.com/bim-for-construction-projects-is-redefining-the-building-industry/feed/ 0
